Can't exclude!
- Thread starter meshman
- Start date
I opened the stock airport, save KOVE as an ADE file and located the pole in question. First, your coordinates were ever so slightly off from that of the stock location. Did you at one point move the pole? Why not simply move or delete it? I was able to both. Maybe I didn't understand the question?
edit: Ok, I see; you're not able to view the pole using ADE. I can't help you there as I'm able to view it. The pole should show up with a sparse scenery setting.
edit: Ok, I see; you're not able to view the pole using ADE. I can't help you there as I'm able to view it. The pole should show up with a sparse scenery setting.
Attachments
Last edited:
- Messages
- 12,244
- Country
Hi Lance,
I don't see a problem, use
Without exclude:
With exclude:
Edit.
Or, as Kagazi said, just delete it in ADE.
I don't see a problem, use
Code:
<?xml version="1.0"?>
<FSData
version = "9.0"
xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance'
xsi:noNamespaceSchemaLocation="bglcomp.xsd" >
<ExclusionRectangle
latitudeMinimum = "39.4944808"
latitudeMaximum = "39.4948083"
longitudeMinimum = "-121.6168737"
longitudeMaximum = "-121.6164539"
excludeAllObjects = "TRUE"
/>
</FSData>Without exclude:
With exclude:
Edit.
Or, as Kagazi said, just delete it in ADE.
Last edited:
- Messages
- 34,981
- Country

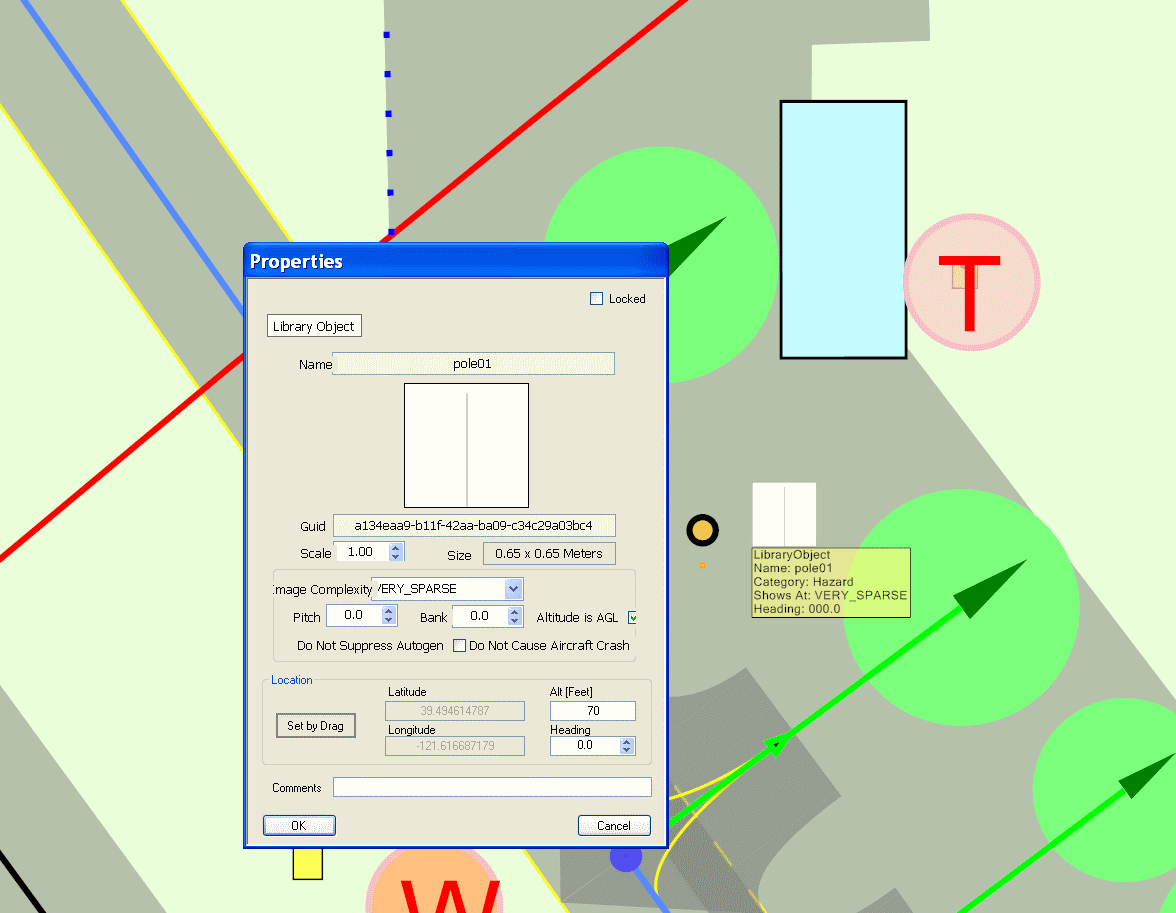

Yea, I found it, by going back and seeing it placed via the XML. Which then caused me to ask why it didn't display? Going into HYPER-zoom revealed this minute yellow square, as seen in relation to the windsock display.
Wonder if there couldn't be a minimum display size for objects, seeing as some of us can't see that close without pressing our nose against the display...
Just wait, Jon. There will be bifocals in your future...
Another way to highlight it would be to select it from the Scenery Object List.
Varifocals for me
Pyscen
Resource contributor
- Messages
- 3,040
- Country
Another way to highlight it would be to select it from the Scenery Object List.
Varifocals for me
You could also use a position marker also... Varifocals, better then bi-focals?
if so I'll take one!
