CVXExtractor - Exporting vector data.

Hi Patrick:

I tested using extraction of one of the largest FSX default CVX vector BGLs:

[FSX install path]\Scenery\1002\scenery\cvx8419.bgl

...with intended output to a ESRI SHP file for tests with ESRI SHP file processing in a 64-Bit FS scenery utility.


While processing Hydro polygons, CVXExtractor halted, but did not crash, with this error message:

cvxextractor_gui_error_oom_shp_from_cvx8419_bgl-jpg.37645



This was the status of processing when the error occurred:

cvxextractor_gui__status_error_oom_shp_from_cvx8419_bgl-jpg.37646



I suspected the "CvxExtractorGUI.exe *32" process was running without a LARGE_ADDRESS_AWARE flag set.


I have thus far had success in Windows (64-Bit) with applying the LARGE_ADDRESS_AWARE flag to 32-Bit exe's via the "4GB Patch" program by 'NTCore' (aka "Daniel Pistelli") available at:

http://www.ntcore.com/4gb_patch.php


So I backed up a copy of the original "CvxExtractorGui.exe" into a ZIP file.

Next, I Drag-N'-Dropped the original "CvxExtractorGui.exe" onto "4gb_patch.exe" to set that flag.


Then I repeated the test of extracting [FSX install path]\Scenery\1002\scenery\cvx8419.bgl

...with intended output of a ESRI SHP file.


The test with the "4 GB Patch" applied to set the LARGE_ADDRESS_AWARE flag was successful ! :D


This was the status of processing when the task completed:

cvxextractor_gui__status_shp_from_cvx8419_bgl_after_4gb_patch-jpg.37649



I then successfully Appended all of the SHP files output by "CvxExtractorGui.exe" to the 64-Bit FS scenery utility. :cool:



IIUC, the "4 GB Patch" applied to set the LARGE_ADDRESS_AWARE flag may fail on some 32-bit EXE's, largely due to DLL dependencies; however, I suggest this merits testing for compatibility to update "CvxExtractorGui.exe". :idea:


Many thanks again for making CvxExtractorGui available to the FS development community. :)

GaryGB


Attachments

  • CVXExtractor_GUI_Error_OOM_SHP_from_CVX8419_bgl.jpg
    15.1 KB · Views: 1,921
  • CVXExtractor_GUI__STATUS_Error_OOM_SHP_from_CVX8419_bgl.jpg
    117.8 KB · Views: 1,865
  • CVXExtractor_GUI__STATUS_SHP_from_CVX8419_bgl_after_4GB_Patch.jpg
    15.3 KB · Views: 1,855
Last edited:
i'll confirm what Gary has found. I resolved the issue by using corflags:

corflags CvxExtractorGui.exe /32bitpref-

This sets the app to not prefer 32-bits, and frees up the memory.

Hi Patrick.

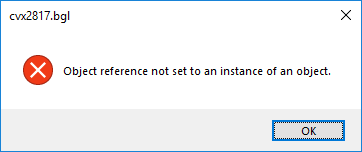

In Scenery directory 0302, cvx2817.bgl throws an error on the extraction of RDX2817. This is New York City area.


Hi Patrick.

I'm now getting an error: Not a bgl file for cvx2817.bgl

rhumbaflappy said:
Hi Patrick.

I'm now getting an error: Not a bgl file for cvx2817.bgl
Click to expand...
Weird. I downloaded the zip file in a new folder, unzipped , ran it against the file with no error.
1 - Do you have the same issue with other BGL files ?
2 - Can you send me your BGL file ?

Hi Patrick:

My successful results confirm your results reported above ...for CvxExtractorGui_1_0_3_1 ESRI_SHP extraction of:

[FSX install path]\Scenery\0302\scenery\cvx2817.bgl


cvxextractorgui_v1_0_3_1_gui_shp_from_cvx2817_bgl-jpg.38194


cvxextractorgui_v1_0_3_1_status_shp_from_cvx2817_bgl-jpg.38193


Name.............Size (bytes)
FWX2817.shx...75,516
FWX2817.shp...1,845,084
FWX2817.dbf...386,636
FWX2817.xml...490
RRX2817.shx...41,316
RRX2817.shp...557,620
RRX2817.dbf...396,801
PKX2817.shx...25,740
RRX2817.xml...539
PKX2817.shp...2,912,548
PKX2817.dbf...246,882
FLX2817.shx...2,676
PKX2817.xml...536
FLX2817.shp...336,596
FLX2817.dbf...24,891
FLX2817.xml...544
STX2817.shx...18,476
STX2817.shp...661,548
STX2817.dbf...176,966
HGX2817.shx...5,420
STX2817.xml...538
HGX2817.shp...391,460
HGX2817.dbf...26,000
HGX2817.xml...371
HPX2817.shx...274,092
HPX2817.shp...25,605,844
HPX2817.dbf...3,527,808
HLX2817.shx...80,316
HPX2817.xml...773
HLX2817.shp...10,210,460
HLX2817.dbf...772,176
HLX2817.xml...541
UTX2817.shx...5,404
UTX2817.shp...72,604
UTX2817.dbf...51,148
UTX2817.xml...540
RDX2817.shx...574,764
RDX2817.shp...9,668,140
RDX2817.dbf...5,531,238
RDX2817.xml...536

FYI: My CVX2817.bgl is the original file from a full install of FSX Deluxe and Acceleration RTM DVDs (not 'FSX Gold').


Dick: IIRC, your FSX install is a "Steam Edition" ? :scratchch


Hope this helps ! ;)

GaryGB


Attachments

  • CVXExtractorGUI_v1_0_3_1_STATUS_SHP_from_CVX2817_bgl.jpg
    17 KB · Views: 1,435
  • CVXExtractorGUI_v1_0_3_1_GUI_SHP_from_CVX2817_bgl.jpg
    123.2 KB · Views: 1,573
Last edited:
Hi Gary.

Thanks for the heads up as to what I actually was decompiling.

Patrick, it was mistakenly a bgl from Dovetail's FSW! The FSX-SE 2817.bgl decompiles just fine as Gary indicates. Sorry for the scare.

This now begs a question as to whether we may see a version of CvxExtractor (aka "CVXE_GUI") that can decompile "FSW" CVX BGLs ! :D

GaryGB

Last edited:
New life for an old program. GaryGB has found the CVXExtractor can export a shapefile from MSFS CVX polygon bgl files! Earlier I had discovered these BGLs can be seen in the old TMF viewer. And these shapefiles can be added to a MSFS project, and after assigning the correct Properties in DevMode, they can be saved and displayed in MSFS.

Somewhat tangentially related -

In MSFS vector data is stored in 2 separate formats. Files processed by BGLComp (most of the airport data and "local" edits through the developer tools - rectangles, polys, airport bounds, etc) use the existing FSX entropy encoded (from PTC) cvx format projected as QMID as Dick indicated. It's great that Patrick has seamless tools to work with this format!

The global vector data (water, roads, etc, some of which is viewable if you turn on OSM debug in the dev tools menu) is taken from the new cgl files, specifically vecXXX.cgl (OSM) and vecnXXX.cgl (MS proprietary). While many of the rest of the decompressed cgl tile types are open formats or stored raw, the vector data has been very difficult to figure out, as it doesn't have a regular structure or any kinds of identifying structures within (as certain sections can be excluded simply by placing a variable length sequence of 0s). I have no idea why they've chosen to carry forward with two very different formats for different parts of the engine.

Unfortunately the cgl vectors are neither documented or contain compiler support for end users to produce through the SDK, but I was finally able to make some progress after some long debug sessions and reading between the lines of portions of the blackshark.ai patent.

With where it is now, I can decode bounding boxes and arrays of polylines/polygons for a tile, as well as types (although I don't have a mapping for each enum value yet). This represents the core but there are many more optional sections present in some tiles, particularly in higher resolution tiles deeper in the quadtree. Perhaps once I've gotten further with these unknown parts I could look at documenting the format and building a basic compiler/decompiler from tiled shapefiles.

Here's an example of a low-res tile that was decoded:


Last edited:
Having finally learned how to create a TIN file from USGS digital elevation file, I needed CVXExtractor to export airport bounds so I can narrow down the focus to a particular airport. Problem is, I can't get QGIS to display anything from my output file. The layer properties show there are over 200 features, but none of them appear. Could this be an issue because I am using P3D v5.2? Because I haven't had this issue before.

crushnik said:
Having finally learned how to create a TIN file from USGS digital elevation file, I needed CVXExtractor to export airport bounds so I can narrow down the focus to a particular airport. Problem is, I can't get QGIS to display anything from my output file. The layer properties show there are over 200 features, but none of them appear. Could this be an issue because I am using P3D v5.2? Because I haven't had this issue before.
Click to expand...
Hi Chris
CvxExtractor has been written specifically for FSX. As P3D files are (were ?) almost similar to FSX, it is possible that it works with P3D as well. But as p3D evolves (and not FSX) this will be less and less the case.

Patrick Germain said:
Hi Chris
CvxExtractor has been written specifically for FSX. As P3D files are (were ?) almost similar to FSX, it is possible that it works with P3D as well. But as p3D evolves (and not FSX) this will be less and less the case.
Click to expand...
That's about what I figured, but having reinstalled SBuilderX and appending the exported airport bounds, it worked fine so it must be a problem with importing into QGIS. Thanks for your great program Patrick!

Last edited:
crushnik said:
Having finally learned how to create a TIN file from USGS digital elevation file, I needed CVXExtractor to export airport bounds so I can narrow down the focus to a particular airport. Problem is, I can't get QGIS to display anything from my output file. The layer properties show there are over 200 features, but none of them appear. Could this be an issue because I am using P3D v5.2? Because I haven't had this issue before.
Click to expand...

Hi Chris:

Did you output via CvxExtractor- and use in QGIS- a *.SHP file from the 'local' CVX Vector BGL ?

Is there an ICAO you want to use as a worked example ? :scratchch

GaryGB

Last edited:
Gary, it's good to hear from you again!

I did, but upon further investigation I found that QGIS said the SHP file I exported from CVXExtractor had no attached coordinate reference. So I tried exporting in Open Street Map format and that worked just fine.

I have finally learned how to make a TIN file, and have an airport boundary for the airport... it's only a matter of figuring out how to limit the TIN data to just one particular airport's boundary, then what to do after that. One step at a time, and I'm getting closer to figuring it out.
