MSFS20 Flag waving in the wind direction

I'm in the making of a tutorial for a flag in msfs2020, but I have this weird distortion in msfs2020
https://imgur.com/a/kwificC
Can someone help me?

in blender, all it's ok and the animation works very well
I checked for the location and rotation and position, (CTRL A, all transforms)
I tested with apply and no-apply of modifiers also

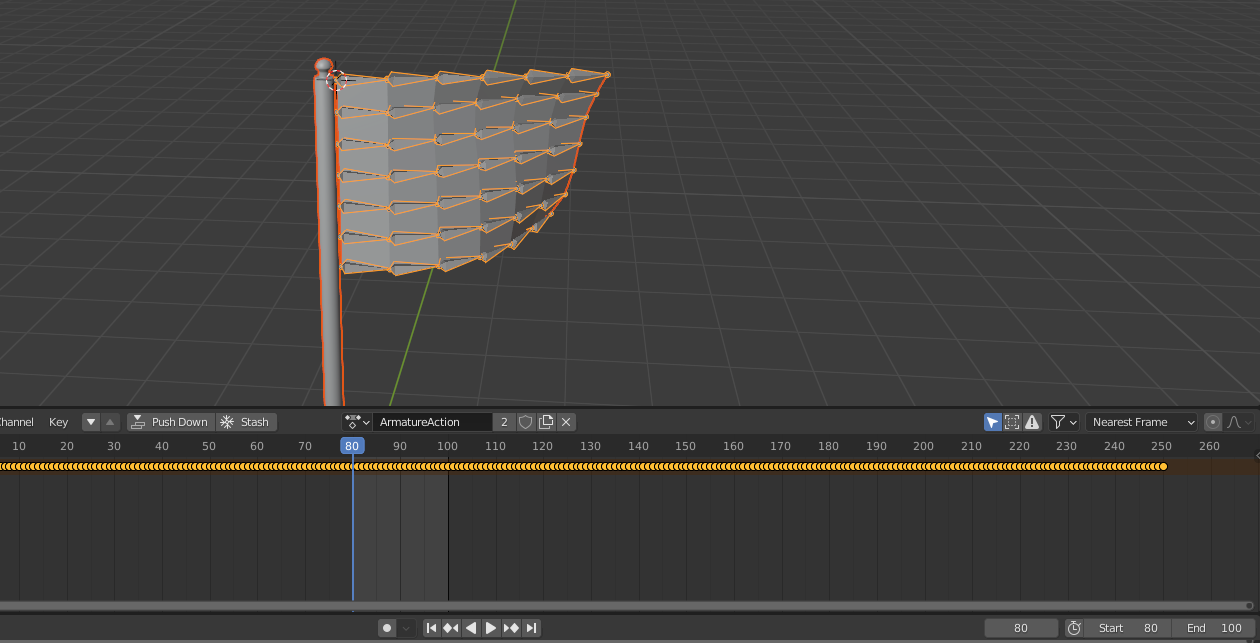

Ok just checked and the problem occurs only if I choose a custom start and custom end in blender in Action editor:


https://imgur.com/a/kwificC

Last edited:
maybe the weightpainting to parent the plane to the bones is not optimized?
That produced some weird deformations in my case too.

you can set the "Falloff" in the weight paint settings to "constant" to get a weight of "1" by one mouseclick. otherwise it depends of the distance from the mouse coursor to the vertecis how much weight it really gets.

Mikea.at said:
maybe the weightpainting to parent the plane to the bones is not optimized?
That produced some weird deformations in my case too.

you can set the "Falloff" in the weight paint settings to "constant" to get a weight of "1" by one mouseclick. otherwise it depends of the distance from the mouse coursor to the vertecis how much weight it really gets.
Click to expand...
I manually worked on the weightpainting and just checked and everything is fine
Also, I would have the same problem on blender if it was the weightpainting, don't you think?

I made like 100 tests today, what a lost of time 😅

Mikea.at said:
Nope mine was fine in blender too but in msfs not. :)
Click to expand...

I checked and redo all the weight, same problem

Also, I can confirm the problem is when I want to make a perfect loop by cutting some of keyframe.
1. I check the loop I want and I erase all other keyframe
2. I copy and paste and grab the looped keyframes to have minimum 100 frames
3. I set the start to 1 (default), the End to 100 is my animation is 100 frames for example.

And then I hit "push" to push it to NlaTrack and then export it. And it's appears to be distorbed as fock lol

Do you have a better workflow ?

Thanks

your weight painting value is too low,

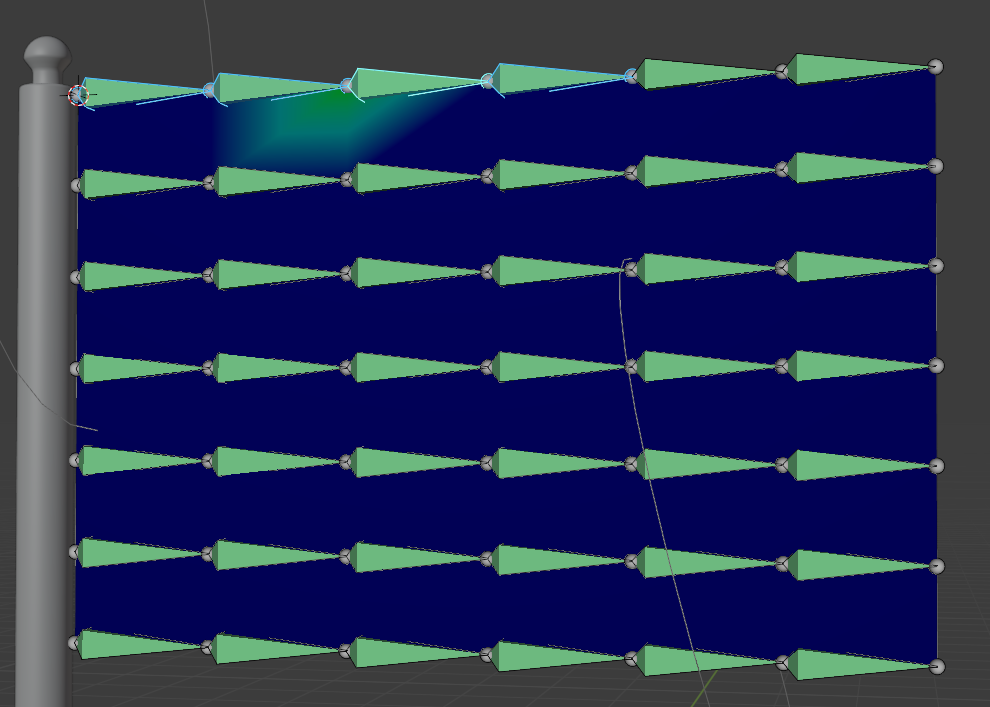

this is how it is in your file:

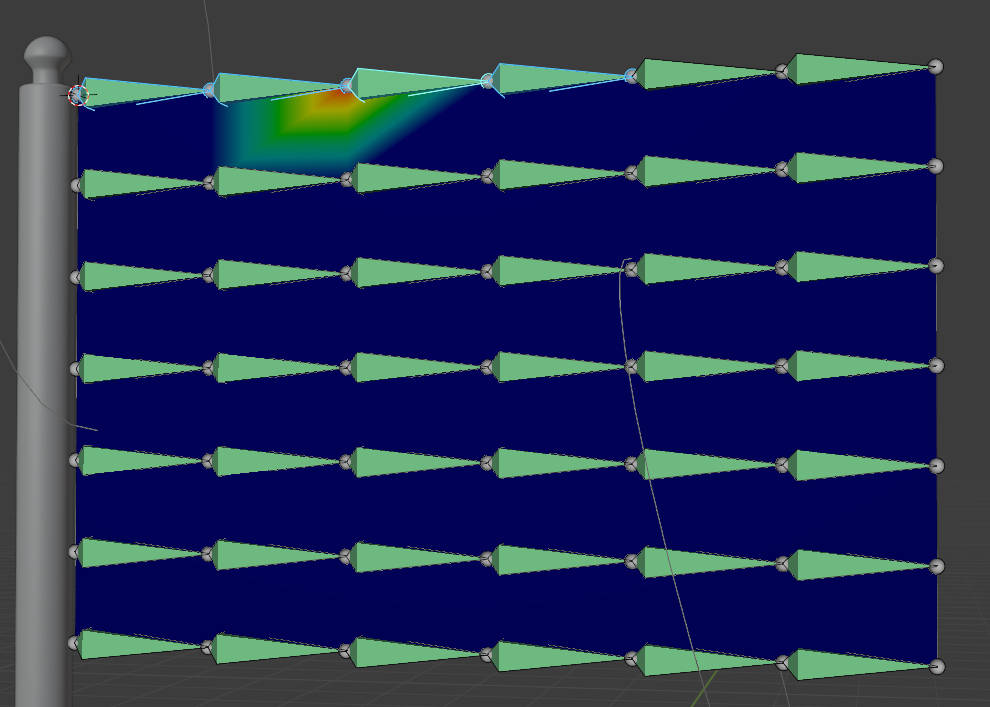

and this is how it should be:



there is one more difference to my object but maybe this does not matter. i did the weight painting to the tip of the bones not to the root. but it is possible that it is working in both ways.

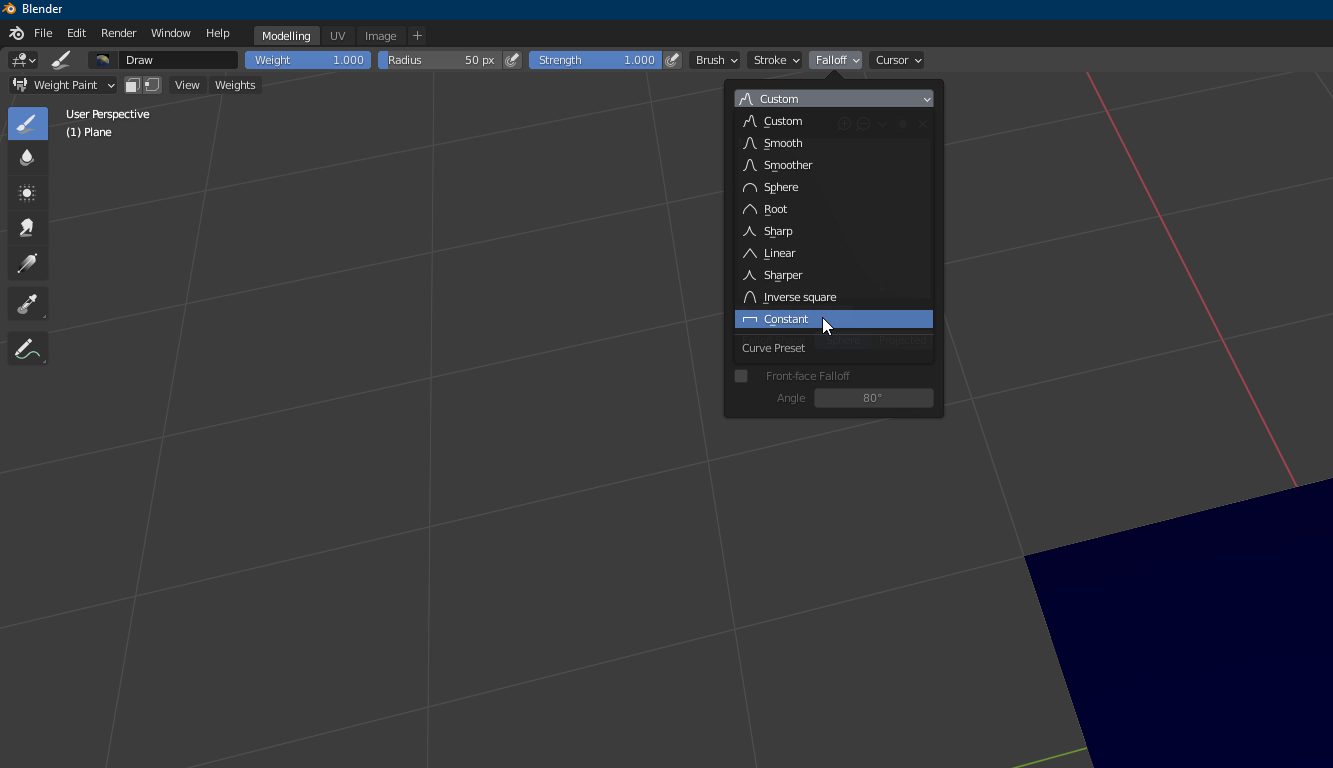

if you set the strength to 1.000 and the Falloff to Constant then you get the right weight with only one klick.


Mikea.at said:
if you set the strength to 1.000 and the Falloff to Constant then you get the right weight with only one klick.

View attachment 69689
Click to expand...
Thanks Mike it helped a lot,
However, same problem once I try to just keep 50 keyframes only in the timeline (I erased the other, placed the start a 1 position and then put Start at 1, End at 50)
Incredible since this morning I'm still at the same state.. :/

Try to bake the animation after you set the sweet spot for start and end then you only get keyframes for that part.

Mikea.at said:
Try to bake the animation after you set the sweet spot for start and end then you only get keyframes for that part.
Click to expand...
Hi, I tried but I can't figure how to bake and keep the frame that I want. The make makes the frames and a very weird position

I'm gonna start over again today

Edit: After again some tests (recreate with different methods), it's all the same as before
Note: When I see the gltf file, I see a node:
"scale" : [
1.0000007152557373,
1,
1.0000004768371582
],
Click to expand...
Is that normal? I have tried by apply again the scale but same result

Last edited:

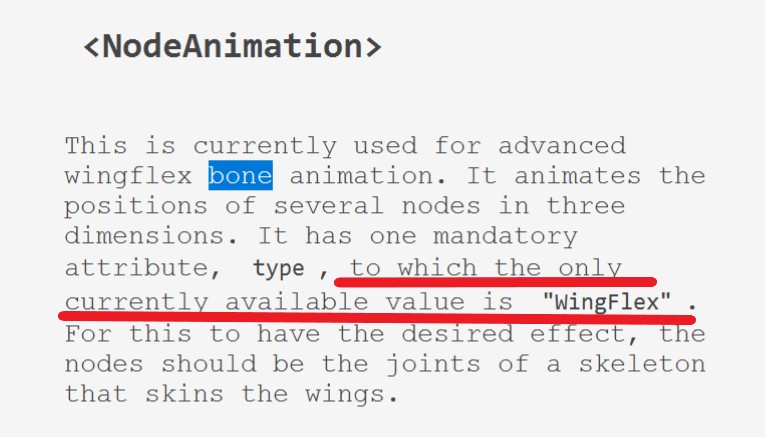

Hi I tried again following a post talking about quaternion (wxyz) hopping it was that but I'm afraid it's not working so far...
Anyone send help ? lol

Luicid said:
Hi I tried again following a post talking about quaternion (wxyz) hopping it was that but I'm afraid it's not working so far...
Anyone send help ? lol
Click to expand...
Having the same issue myself. I've started from scratch a few times. It would be create to compare a working gltf file :)

JimmyB said:
Having the same issue myself. I've started from scratch a few times. It would be create to compare a working gltf file :)
Click to expand...
Hi
I think there is a major problem in bones animations since no one could figure how to make it work properly without deformations
I will continue to test from time to time anyway

As I began to be confident enought with blender I don't want to try 3DsMax (and the cost of the licence xD)
