Flight_model.cfg - Contact Points

Messages
34
Country
italy
Hi All,
in MSFS Contact Points are in section [CONTACT_POINTS] of Flight_model.cfg.
How can I see their positions graphically using ModelConverterX?
Thanks


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

At the moment MCX only reads the aircraft.cfg file. If the name has changed for MSFS I would have to update that.


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

I had a look at the code now and it was relatively easy to add this. So the next development release will read the flight_model.cfg file as well and render the points defined in it.

Messages
34
Country
italy
I had a look at the code now and it was relatively easy to add this. So the next development release will read the flight_model.cfg file as well and render the points defined in it.
Great Arno, thanks a lot!

Messages
34
Country
italy
Hi Arno,

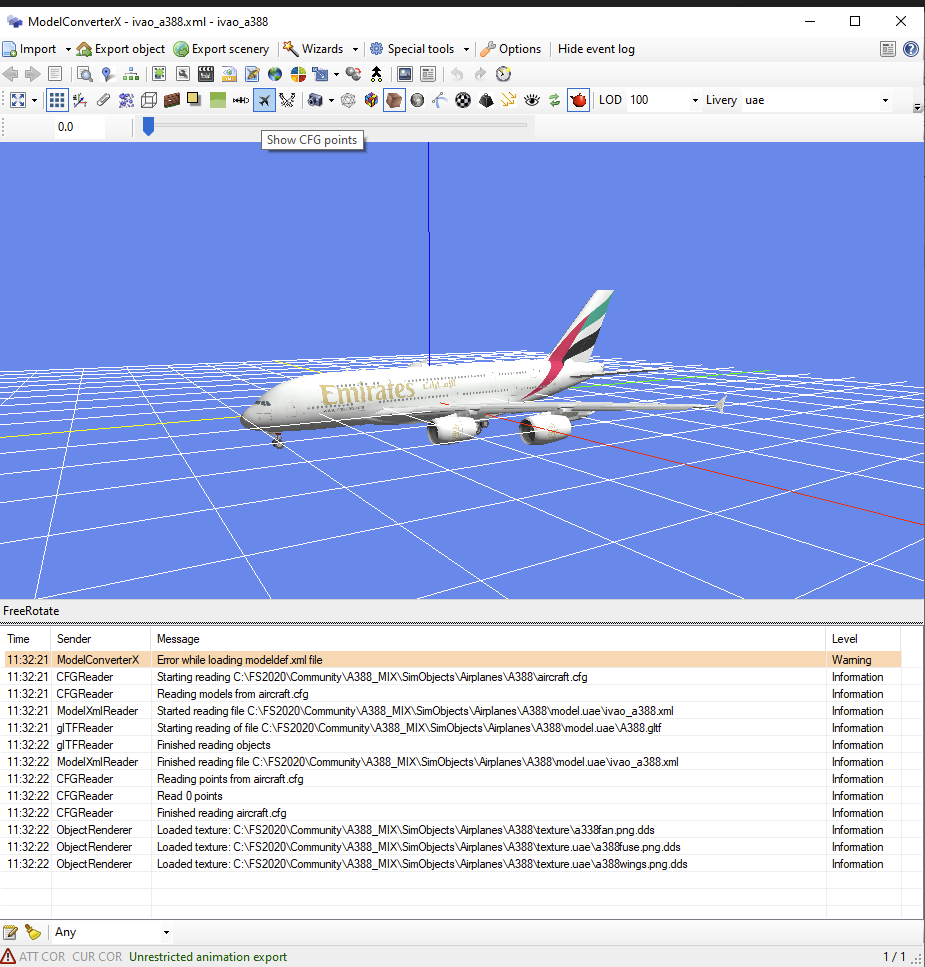

looking at changeLog.htlm I seen that from now MCX can read Flight_model.cfg, I clicked on "Show CFG points" icon but nothing happens and contact point are not shown.
Thanks.



arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

I only tested with some default MSFS aircraft and there it worked. Is the flight_model.cfg file in the same folder as the aircraft.cfg file for this model?


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

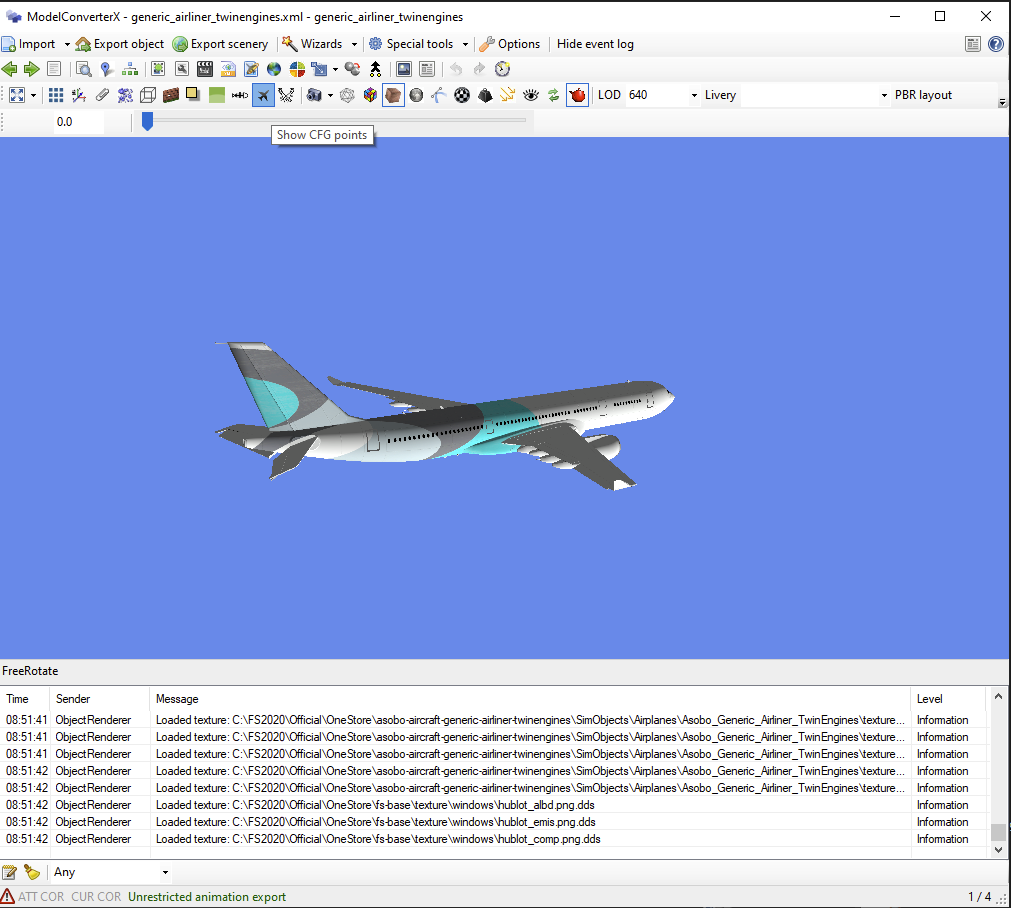

Which default aircraft did you test with? I tried the C208 (asobo-aircraft-208b-grand-caravan-ex) for example and that one works fine.



arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

I did some more testing and I found out that reading the CFG points was not very robust. I have modified MCX now so that it should handle more situations correctly. MSFS is really more complex here with all the extra configuration files.

I will push a new development release later today, but I still think the read points are not always correct.


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,534
Country
netherlands
Hi,

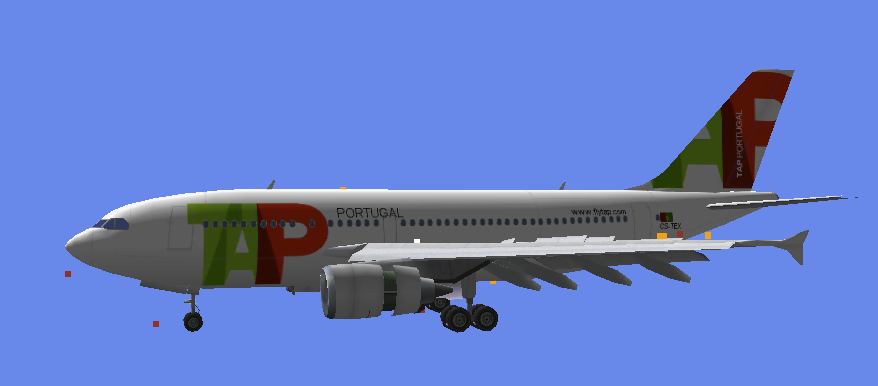

I did a last check this evening and the model and the CFG points were not aligned correctly, they were rotated 180 degrees relative to each other. So I have fixed that as well now. The next development release with all these fixes should be online in around 30 minutes.
