Getting FSDS Objects into FSX Libraries

R

royboy

Messages
4
Country
canada
How?

I have created mdl in FSDS 3.5 and saved it in simobjects but it does not show up in OPT. How do I get it there. Ideally I would like to have a subfolder with all my objects recognized.

Ant help appreciated.

Instant scenery has a tool that lets you put objects into a bgl library. Arno also has a tool on this site called Library Creator XML to create libraries. I think it works for FSX models as well as FS models.

As Jon says, you need to put the MDL objects in a object library BGL file. Just placing them in the SimObjects folder does not make them available for use in scenery.

More help please

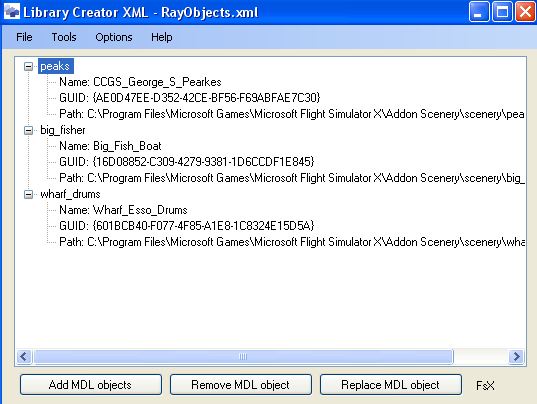

I have created a compiled bgl library with library creator. (see image) I have placed the bgl file in the simobjects folder. However the objects still do not show up in the object placement tool by either the guid or the name.

Obviously I am doing something wrong. Please help.

Thank you.

Ray


Attachments

  • libcreator.jpg
    46.1 KB · Views: 538
Yes, the BGL is supposed to be in the scenery folder of your problem. And the textures that are used by the objects in the texture folder.

After that the object should show by GUID in the Object Placement Tool. By name is not possible unfortunately.
