MSFS I can't make part of a texture transparent.

Messages
25
Hi everyone. I am trying to create a solid wall with no glass windows. So I would like to pierce the wall by creating transparent areas in the texture. I applied the MSFS_Standard parameter to the material and then assigned a .tga texture with an alpha channel. But now how do I explain to FS that he has to pierce the wall?

I tried to activate both blend and masking parameters but I got, in the first case, a strange effect (normals are correct)



In the second case the texture is not loaded by FS and the object is all white.
How should I set the material to obtain the desired effect?

Since there are so many windows I thought of using this trick to minimize the polygons, and not having to model each frame of each window and then, in sandwitch, a polygon in the middle that makes glass effect and another inside that clone the outside polygon with normal inverted.

Many Thanks.

Messages
300
Country
unitedkingdom
What does it look like if you turn on backface culling? This sometimes helps.

Sent from my SM-G935F using Tapatalk

Messages
300
Country
unitedkingdom
yes, it is active
What do you have the blend mode set to?. I have found that in some instances clip mode is better. Worth a try.

I did see another post where the user was having similar problems to yours but unfortunately I cant remember thethread title. Sorry.

Stinger

Sent from my SM-G935F using Tapatalk

Messages
25

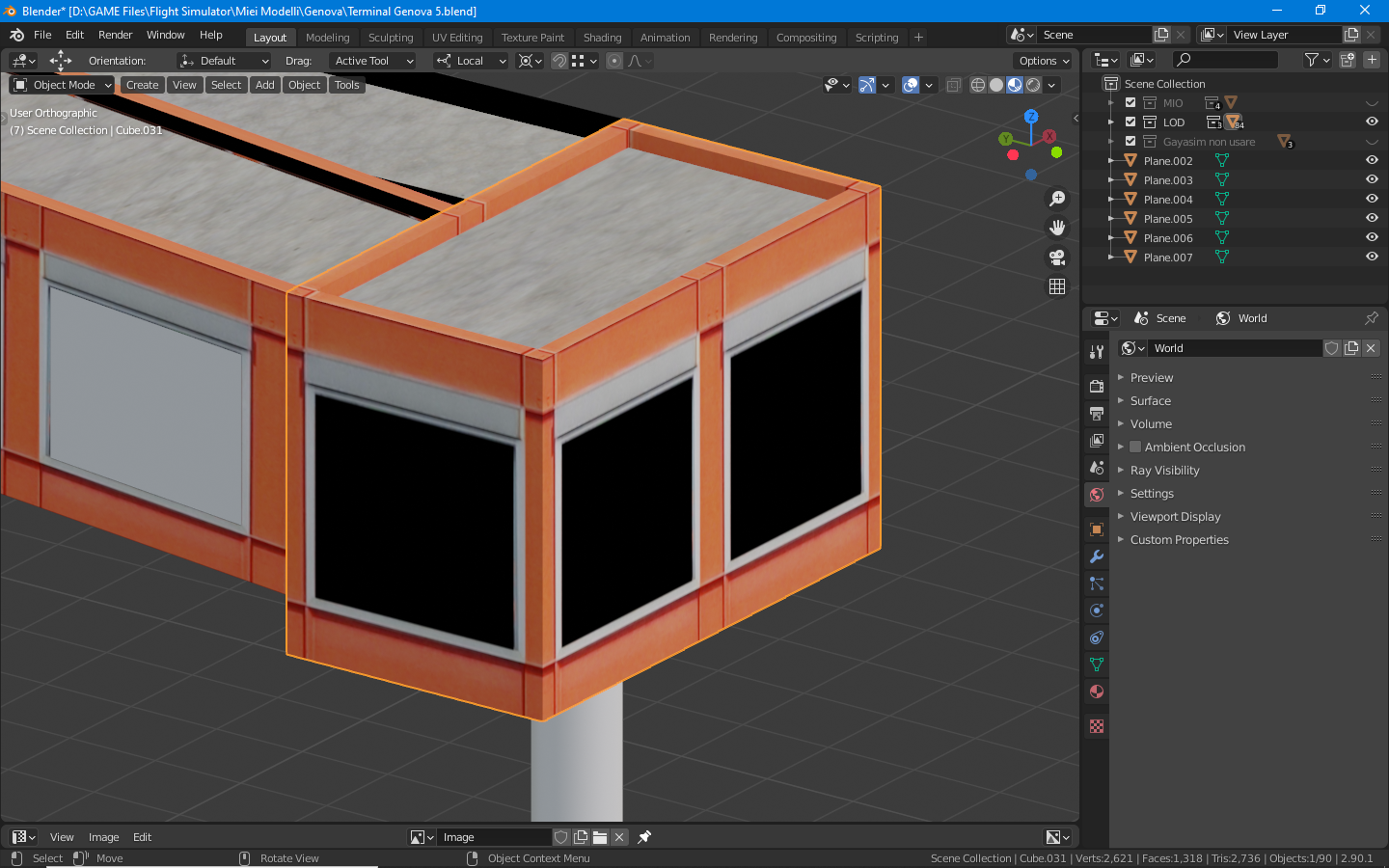

Thi is the object with only Blender materials What I wanted to do was keep the orange part and punch the windows but without shaping the opening. So I would have had the window with glass but without modeling the frame and saving polygons.



I set the blending to the material, via the MSFS shader added with the pugin available here on the forum. As Blend Mode I used both masking and blend. With the second I have the result of the previous post, while with the first in FS the texture does not load and the object remains white.

Now I try to search for the post you are referring to I hope to find it :-D

Messages
300
Country
unitedkingdom
If you only want the reflectivity of the glass you could place a window sized plane just in front of where the window should be then apppy MSFS glass properties to the plane . I know some modellers do this.

Good luck
Stinger

Sent from my SM-G935F using Tapatalk

Messages
300
Country
unitedkingdom
Thi is the object with only Blender materials What I wanted to do was keep the orange part and punch the windows but without shaping the opening. So I would have had the window with glass but without modeling the frame and saving polygons.

View attachment 67207

I set the blending to the material, via the MSFS shader added with the pugin available here on the forum. As Blend Mode I used both masking and blend. With the second I have the result of the previous post, while with the first in FS the texture does not load and the object remains white.

Now I try to search for the post you are referring to I hope to find it :-D
Found it!

The post is in "3d Objects General" forum. The post is titled "Strange transparency in converted 3d object faces"

Good luck
Stinger

Sent from my SM-G935F using Tapatalk
