MCX-Please Help

norchie

norchie

Messages
48
Country
southafrica
Hi all
I am having issues since a couple of days ago,Googled and cannot get to the solution
Please see attached log of errors.MCX makes the mdl file,but also LCX says unhandled exeption has accured ect ect..The MDL file is also 0kb

Your input would be appreciated

Regards

Norchie


Attachments

  • Capture.JPG
    257.4 KB · Views: 406
Hi,

You don't have DirectX 9.0c installed, which is required by the XtoMdl tool.

Arno,...

Is it possible for you to include a search for DirectX 9.0c within MCX making sure its installed as well?

I was thinking the same this morning. Maybe like checking the dot, I should also check the DirectX version and make a nice error message when not found.

Hi guys,thanks for the reply

I think if you can do that DX searcher Arno that can help

Regarding MCX, so i must have DX as well as C++ installed

Regards

Hi all,
Managed to save my BGL in MCX,tried to ad in LCX,but getting errors as per pic

What is the next step if i want to ad this file to FSX with Instant scenery creator 3

Your help is appreciated


Attachments

  • fsdevel160317.JPG
    57.3 KB · Views: 399
You need to enter a full path so that the tool knows where to put the files.

Done and it works

Thank you very much guys (Arno & Pyscen),your help was great

Made my 1st object,so now the bigger objects will be made

Have a nice day all

Hi all,

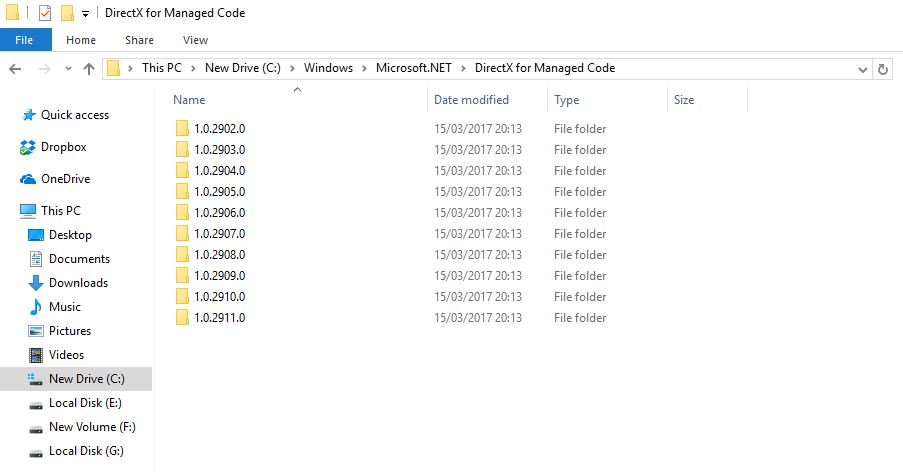

I have a question, can you check if the following folder does exist on your system:

C:\Windows\Microsoft.NET\DirectX for Managed Code\1.0.2902.0

This should be the location that the DirectX files that XtoMDL sometimes misses are located. But I'm not sure if they are there on my machine because I have the DirectX SDK installed (I think I have) or because of the runtime files.

So can some of you confirm the folder exists on your machine as well? Then I can let MCX check this before running XtoMDL.

Great and both of you don't have all kind of developers SDKs and that kind of stuff installed?

Actually not much on this system, a version of Microsoft SDK for P3D and one for FSXSE.

Great, I'll add the check for DirectX in this way then. Seems to be a safe approach :)

Hi Guys
Had some pc trouble the last couple of days,and now MCX is requiring some assistance
When i do a test cube in SU and drop 6 textures on it,i go to drawcall,predict,then minimize
The to textures,i make them power of 2 and click to save textures in the same folder as my original .dae file
It changes all my formats to DDS,but soent save at all
The imagetool screen(as per pic) pops up for every texture but nothing saves,no texture,nor the mdl
Your help would be appreciated
Is the path wrong ect,if so,please guide me
Screenshot 2017-03-22 19.11.53.png
Screenshot 2017-03-22 19.12.29.png

Your not supposed to see the imagetool screen, it should run in the background. Are you using the fsx imagetool?

Hi Arno

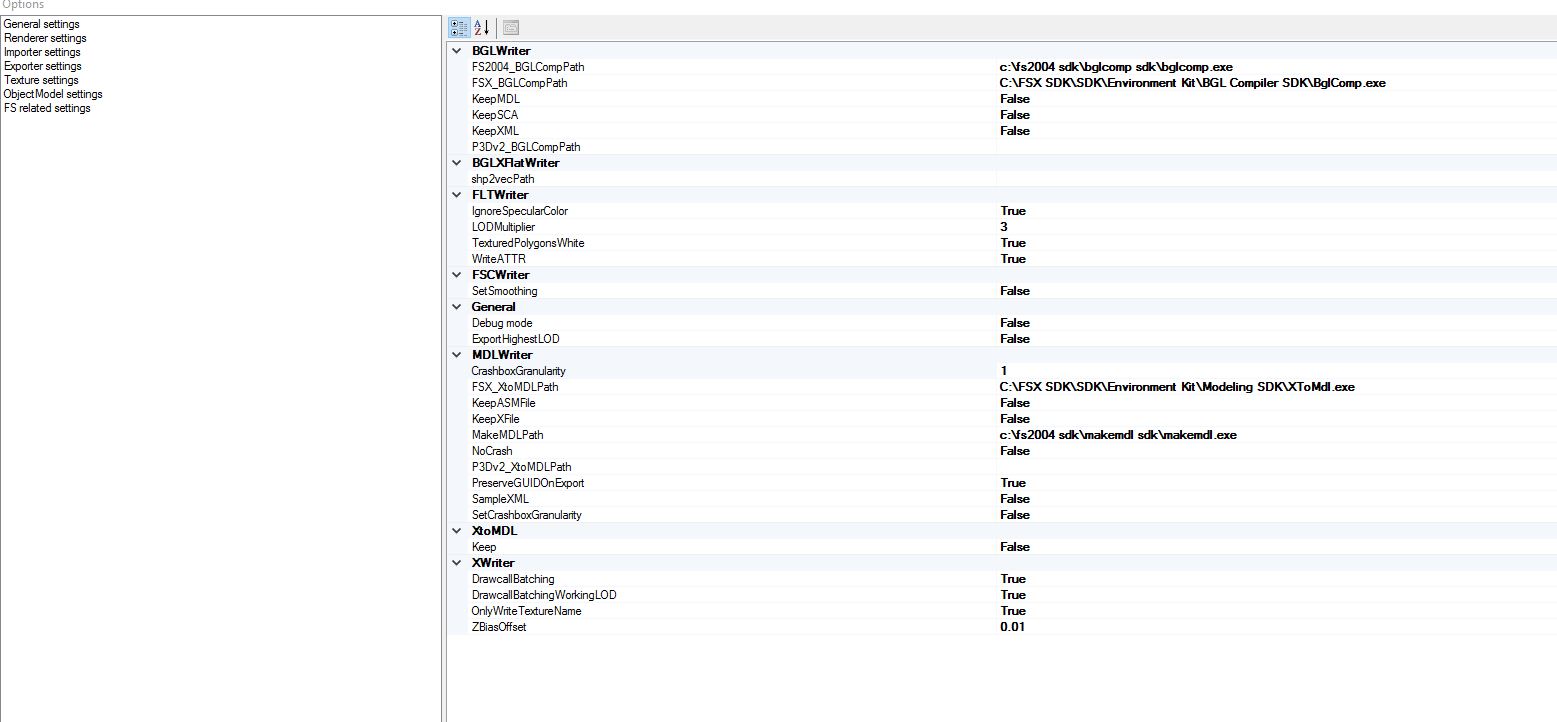

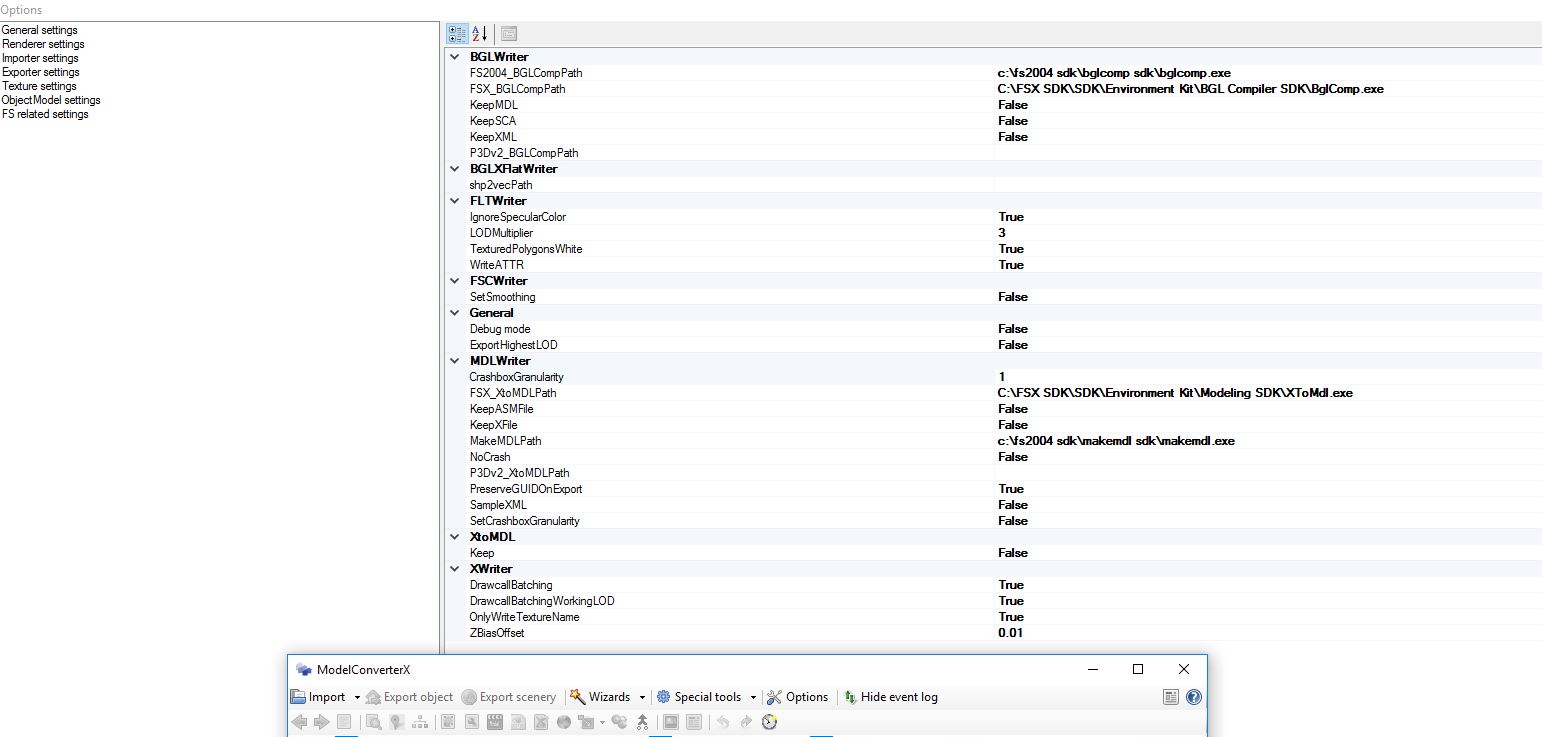

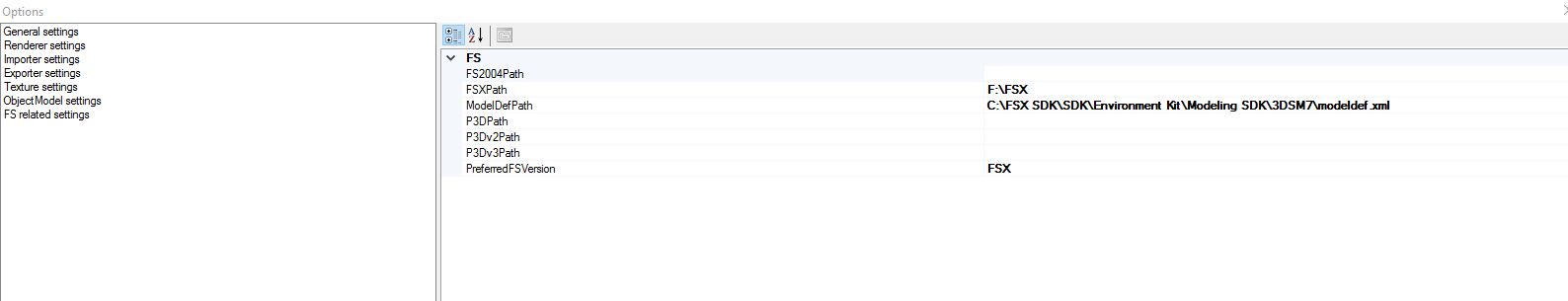

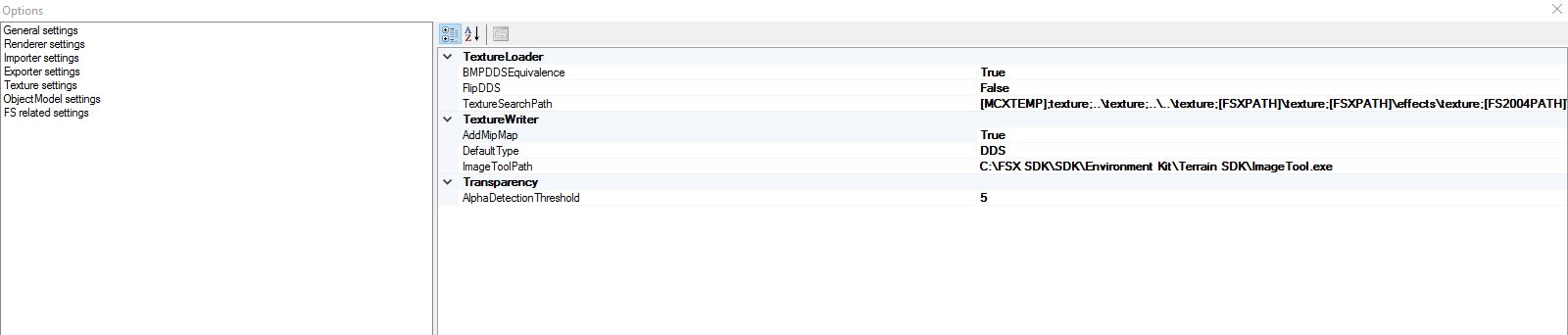

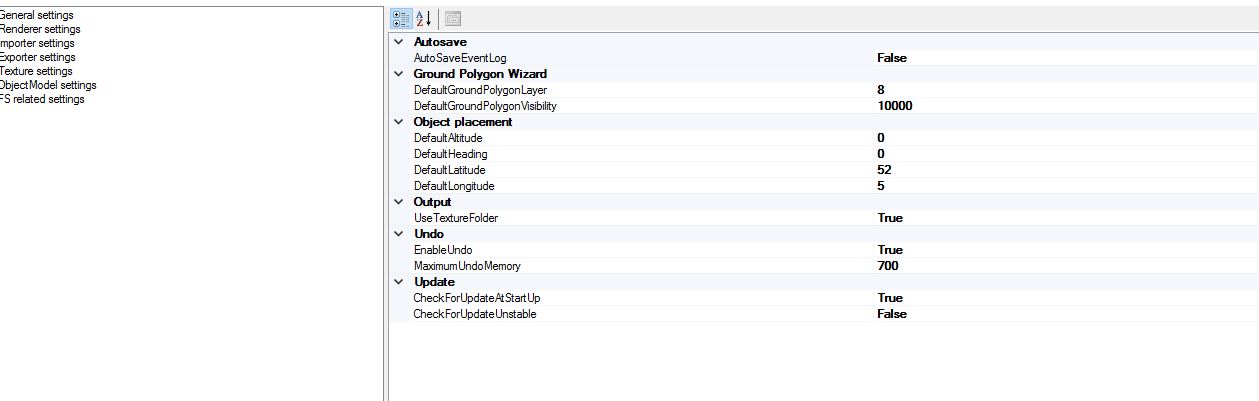

Please see attached pics
Only have FSX installed with FSX SDK
Please check if i maybe have the wrong paths
Regards


Attachments

  • fs1.JPG
    49.8 KB · Views: 321
  • fs2.JPG
    117.2 KB · Views: 371
  • fs3.JPG
    95.9 KB · Views: 365
  • fs4.JPG
    49.2 KB · Views: 361
  • fs5.JPG
    37.7 KB · Views: 340
Hello...

Which version of ImageTool do you have?

Also,... Which version of FSX have you installed? Is it the Deluxe version or maybe the FSE version?
