Gentlemen

I have a question about using SimAttachment in MSFS 2024.
I'm trying to integrate the Asobo_comnav_as155 in my airaft, and the device's screens are working correctly,
but the controls, in both cases, are related to COM1 and NAV1.

Where can I configure the properties of a connected device? and change controls properies?

I need to connect contrlos to COM2-NAV2 screens,

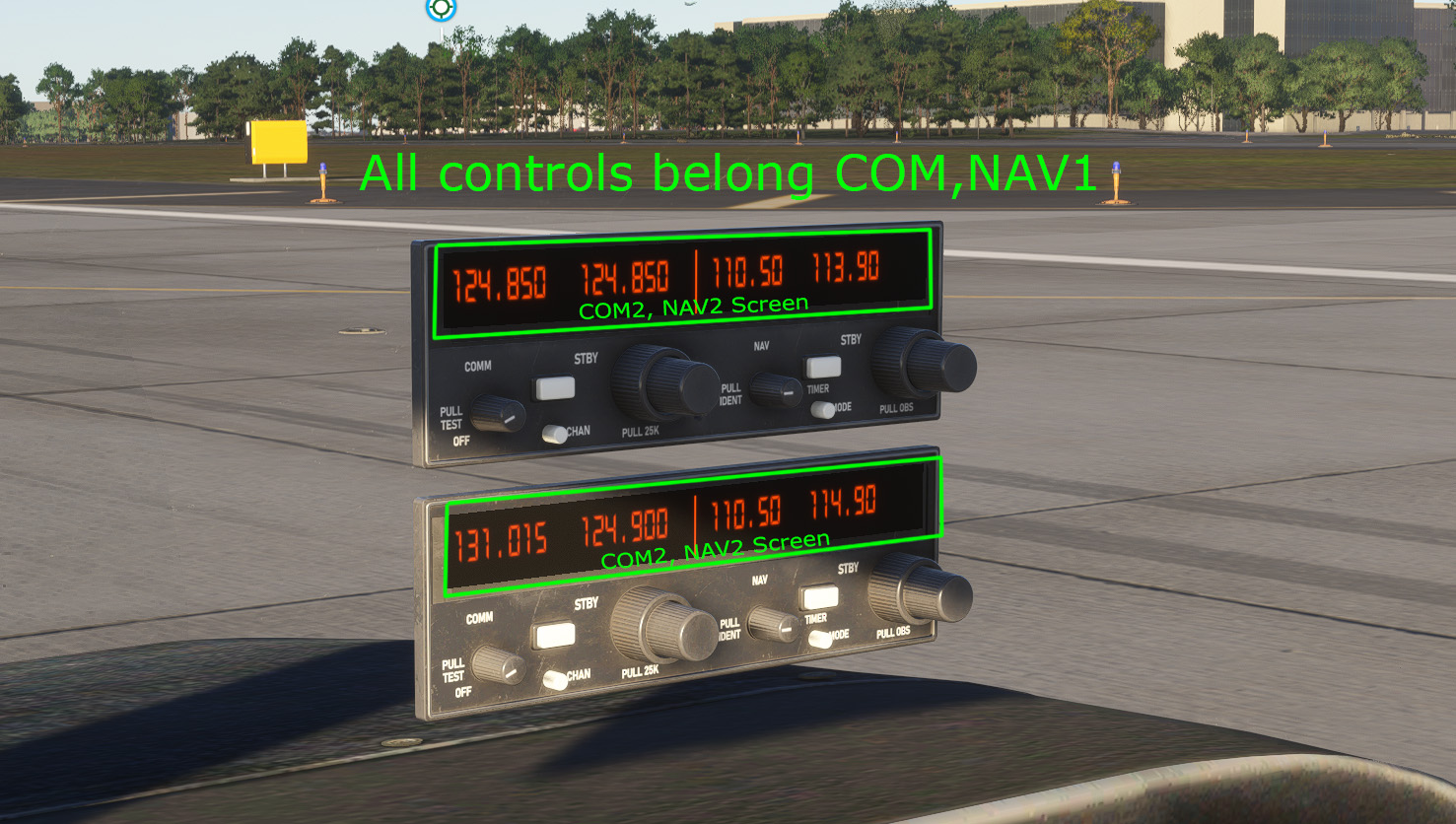

check out the video here:

COM-NAV-Mess.mp4

drive.google.com

Please help!



[EzRyder]

i think you need to add a 'suffix' <id> number to separate them
so left of the green circle you made click the + sign at the bottom of that field and add <id>1</id> and <id>2</id> respectively

then you have to rename all the parts and anims in blender by adding the _1 or _2 (underscore and id number) suffix to all the node and animation names
in the code this variable suffix is represented by #SUFFIX_ID#

you should probably look these templates up in the sdk if possible, here is one on the navcoms

AS92.xml

docs.flightsimulator.com

NavComSystem.xml

docs.flightsimulator.com



[Negotiator]

Thanks for the reply and your suggestion!

Yes, I used to create a copy of the device and assign an animation with the desired prefix "_1" or "_2", and then add code like this to _interior.xml:

<UseTemplate Name="ASOBO_NAVCOM_Screens_Template">
<ID>1</ID>
<NODE_ID>NavCom1_Screen</NODE_ID>
</UseTemplate>

<UseTemplate Name="ASOBO_NAVCOM_Screens_Template">
<ID>2</ID>
<NODE_ID>NavCom2_Screen</NODE_ID>
</UseTemplate>

and everything worked correctly of I use my 3d model and direct animation connection.

Now I'm trying to use the concept described here

Included Attachments

docs.flightsimulator.com

The instrument with all controls is correctly integrated into the aircraft. I make the screen separately and specify what it will display in the panel. CFG

[VCockpit01]
size_mm = 512.70
pixel_size = 512.70
texture = $NavCom1_Screens
htmlgauge00=Generic/Radios/KX155A/KX155A.html?Index=1, 0, 0, 512, 70

[VCockpit02]
size_mm = 512.70
pixel_size = 512.70
texture = $NavCom2_Screens
htmlgauge00=Generic/Radios/KX155A/KX155A.html?Index=2, 0, 0, 512, 70

and the screens work correctly.

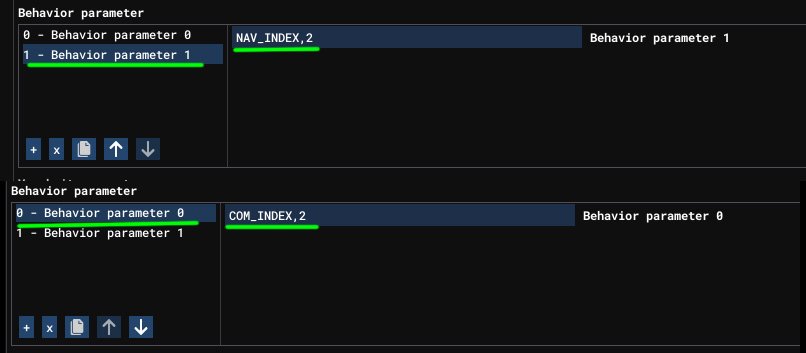

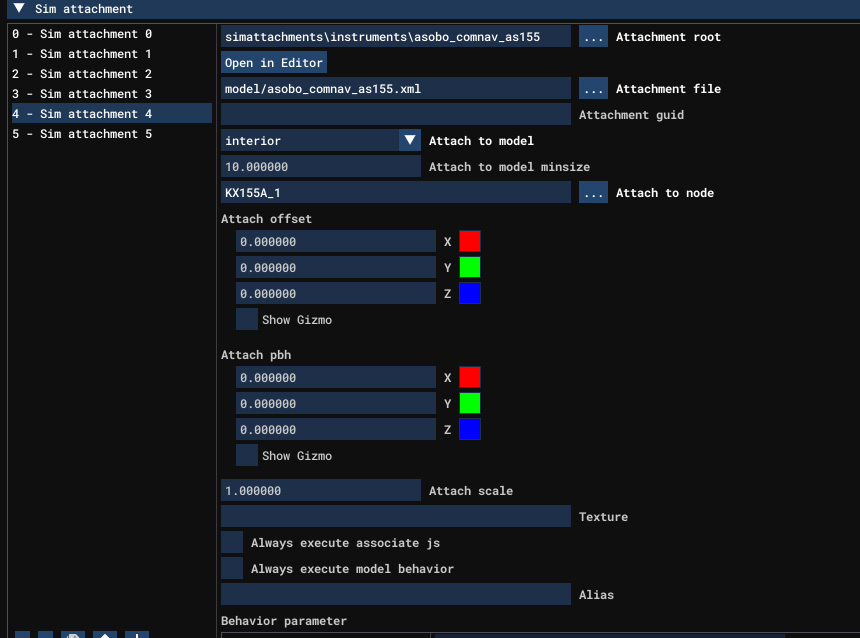

I tried to change properties in behavior_parameter - see pic. All changes stored in attached_objects.cfg


attach_to_node = WatchTimer
attach_offset = -0.000326,-0.002916,-0.000242
attach_scale = 1.05

[SIM_ATTACHMENT.4]
attachment_root = simattachments\instruments\asobo_comnav_as155
attachment_file = model/asobo_comnav_as155.xml
attach_to_model = interior
attach_to_node = KX155A_1
;[REMOVED]attach_offset = 0.001048,0.006441,-0.003874
;behavior_parameter.0 = "<ID>1</ID>"
behavior_parameter.0="COM_INDEX,1"
behavior_parameter.1="NAV_INDEX,1"

[SIM_ATTACHMENT.5]
attachment_root = simattachments\instruments\asobo_comnav_as155
attachment_file = model/asobo_comnav_as155.xml
attach_to_model = interior
attach_to_node = KX155A_2
behavior_parameter.0="COM_INDEX,2"
behavior_parameter.1="NAV_INDEX,2"

you can see I tried different ways but have the same problem.

It would be nice to use new conception to attach already exists instruments in the model but how change their behavour?
