Problem with exporting BGL

E

edurubini

Messages
6
Country
brazil

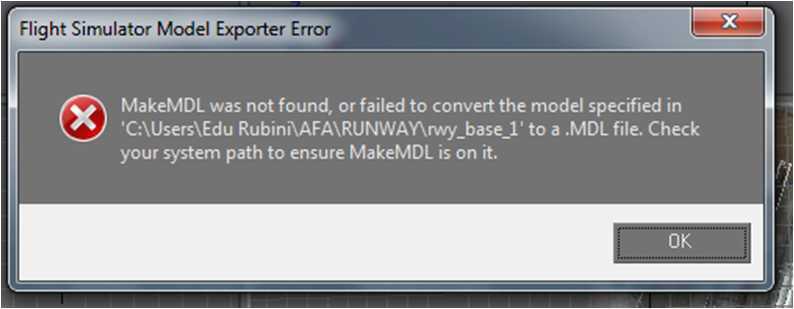

I have been following the ground poly creation tutorial very closely and created a runway with base textures for a project I am doing. Using the latest makemdl, I try t5o export it, but again and again, I receive the message that makemdl couldn't be found, like the one attached.


Can someone help me?

Thank you very much.

Eduardo Rubini


Attachments

  • Gmax Error.png
    Gmax Error.png
    164.5 KB · Views: 462
edurubini said:
I have been following the ground poly creation tutorial very closely and created a runway with base textures for a project I am doing. Using the latest makemdl, I try t5o export it, but again and again, I receive the message that makemdl couldn't be found, like the one attached.


Can someone help me?

Thank you very much.

Eduardo Rubini
Click to expand...

if your makemdl is located in
C:\Program Files (x86)\Microsoft Games\FS2004 SDK\makemdl
or anywhere in Program Files, run gmax as admin. run makemdl as admin as well.

edit: nm, misunderstood the problem on first glance.
edit2: on 2nd look, try it. IT says makemdl was not found or it failed to convert the model. So try the run as admin.

Last edited:
Tried running as admin, no results. I have the FSX gamepack installed, no FS2004 SDK, and copied the necessary files for the FS2002 gamepack from my FS2002 Pro CD. The MakeMDL is both in my plugins folder in gmax and in my plugins folder in the FS2002 gamepack plugins folder. Any other ideas as to what the problem may be?

Thank you again,

Eduardo Rubini

Hi,

Instead of trying to get the fs2002 gamepack working, you might also just export as fsx mdl and then use the modelconverterx ground polygon wizard for your ground polygons. Might be a lot easier.

If you still want to solve the problem, did you start gmax with the correct shortcut for the fs2002 gamepack?

Hi Arno. I am not quite sure how to export it as an fsx mdl, when I tried it with the fsx gamepack (which apparently allows me to do that), it sad I had no GUI and no friendly name. What do you suggest?

Thank you for the help,

Eduardo Rubini

you have to assign a gui in the Fs Tools, with the Gmax gamepack, for this you have to set the path to the Fsx_gmaxGamepack plugins.
Makemdl belong to the Fs2004 SDK, you have to get this and set the path in MCX.

Last edited:
Make sure you don't have any spaces in the MDL file name, and make sure it starts with a letter (no number). No punctuation in it either except for the underline (_). Make sure that any of the folder names in the path have no punctuation in their names (like the period).

Hope this helps,

Ok, I have tried converting it with a gui and a friendly name, but it insists on failing, by giving me the attached messages. Also, how can I set the correct path for Make MDL? Since it says it couldn't be found, I reckon there must be some way to indicate a path to it, right? I'm sorry to insist so much on the matter, but as a novice developer this problems with exporting my models have proved to be quite a hindrance!

Thank you again for your help.

Eduardo

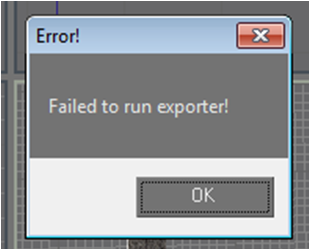

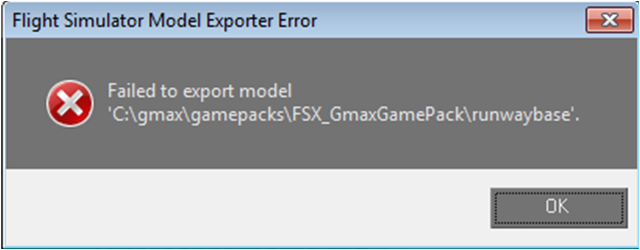

Sorry, forgot to attach the messages it gives me when I try to export it as MDL:


Attachments

  • GMAX Error 1.png
    GMAX Error 1.png
    27.9 KB · Views: 529
  • GMAX Error 2.png
    GMAX Error 2.png
    30.4 KB · Views: 480
  • GMAX Error 3.png
    GMAX Error 3.png
    59.5 KB · Views: 504
  • GMAX Error 4.png
    GMAX Error 4.png
    19.5 KB · Views: 470
have you set as default punctuation, the "dot" instead of "coma", if not, Gmax can't work properly , this can be achived changing the native language of the computer.

arno said:
Hi,

Instead of trying to get the fs2002 gamepack working, you might also just export as fsx mdl and then use the modelconverterx ground polygon wizard for your ground polygons. Might be a lot easier.

If you still want to solve the problem, did you start gmax with the correct shortcut for the fs2002 gamepack?
Click to expand...

Do you HAVE to have the FS2002 gamepak if you dont want to do this in MCX but the old school way?
MCX is great, but its good to know how to do these things without it.

Calculations are easy with a calculator, but take away electricity and you might have a problem if its not memorized.

Yes! It worked! Thank you so much for the help! I guess the Brazilian comma system isn't really recognized by gmax. Well thank you all for the help, and thank you Bernardo for the solution!

Eduardo Rubini

kevintampa5 said:
Do you HAVE to have the FS2002 gamepak if you dont want to do this in MCX but the old school way?
MCX is great, but its good to know how to do these things without it.
Click to expand...

Yes, modelconverterx replicates the fs2002 style code, but when using only gmax you need the fs2002 gamepack. But why make it harder when there is a tool? You are also making your model in gmax, while you can also create the hex code of the mdl directly.


Send from my phone using Tapatalk, so excuse the short sentences and possible typos

arno said:
Yes, modelconverterx replicates the fs2002 style code, but when using only gmax you need the fs2002 gamepack. But why make it harder when there is a tool? You are also making your model in gmax, while you can also create the hex code of the mdl directly.


Send from my phone using Tapatalk, so excuse the short sentences and possible typos
Click to expand...

well i use blender and sketchup mostly. i know basic gmax functions but would like to learn more.
