MSFS Repositioned Gate Error

Messages
34
Country
italy
Many thanks for Christmas gift!

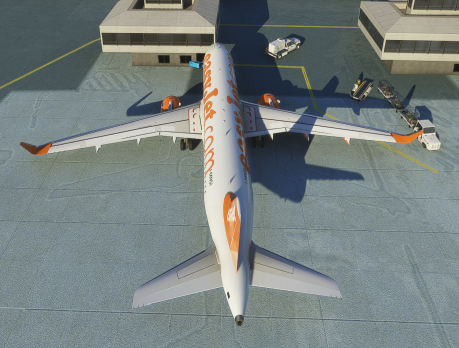

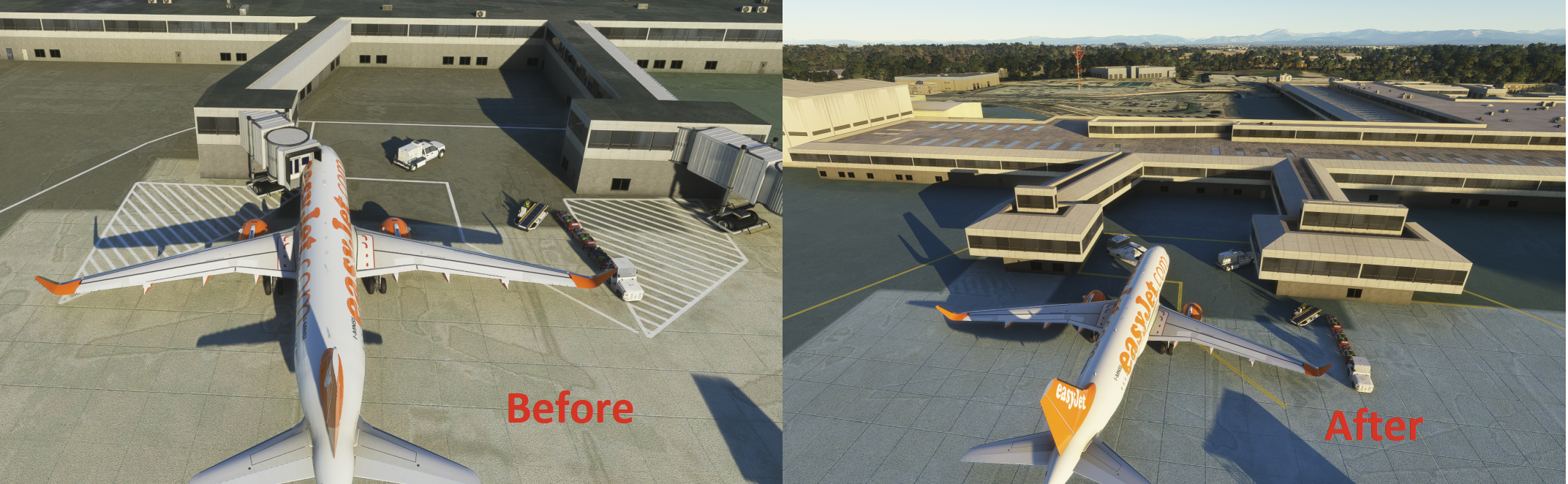

I installed ADE and tried to do a little test by modifying a badly positioned GATE when starting cold & dark. Everything took place without the slightest problem and no errors. Then I saved the project in the Community and restarting FS2020 I noticed that the GATE has been repositioned correctly instead the Jetways have disappeared also the building has changed, as if FS2020 covered the default airport with another level. (Airport LIML GATE 41)



scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
Can you post a backup of the project. How to do this is described in a post at the top of this forum

Messages
34
Country
italy
Hi Jon,
this morning, to make sure I didn't make any mistakes, I created a new project by repositioning the LIML GATEs but the result was the same as yesterday.
Here's the backup.
Thanks for your valuable work!


Attachments

  • LIML_GateFix_Backup.zip
    1 MB · Views: 30

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
And the change you made is in gate 41?

Messages
34
Country
italy
In the first project I changed only gate 41 but this morning, in the second project I sent you, I changed the position of all gates served by Jetways from 41 to 45 and changed gate 45 from small to medium.


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
I m checking but I think one issue is that ADE is does not handle jetways at the moment. I am not sure why this gives the error but as a test create a new project from LIML. Do nothing with it and make no changes but build it and put it in the Community folder removing any existing packages for LIML.

See what you find in sim. This will help to determine if it might be missing jetway objects. I am working on adding jetways to the next alpha. They appear different than those for FSX so there is a bit of work to do

Thanks for your help and interest


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
OK - I think the problem of jet ways is that ADE is excluding the base jet ways but not replacing them. Try this

With your project open go to Tools > Raw Data View and expand the tree so you can see the Airport Delete Record. Find the entry for Delete Jetways and change it from TRUE to FALSE. Close the RDV, Save the project and build again. This time the jetways should be present


Messages
34
Country
italy
As suggested from you I just created third project from stock airport LIML without any changes.
I simply saved, builded and copied it in my Community folder cleaned.

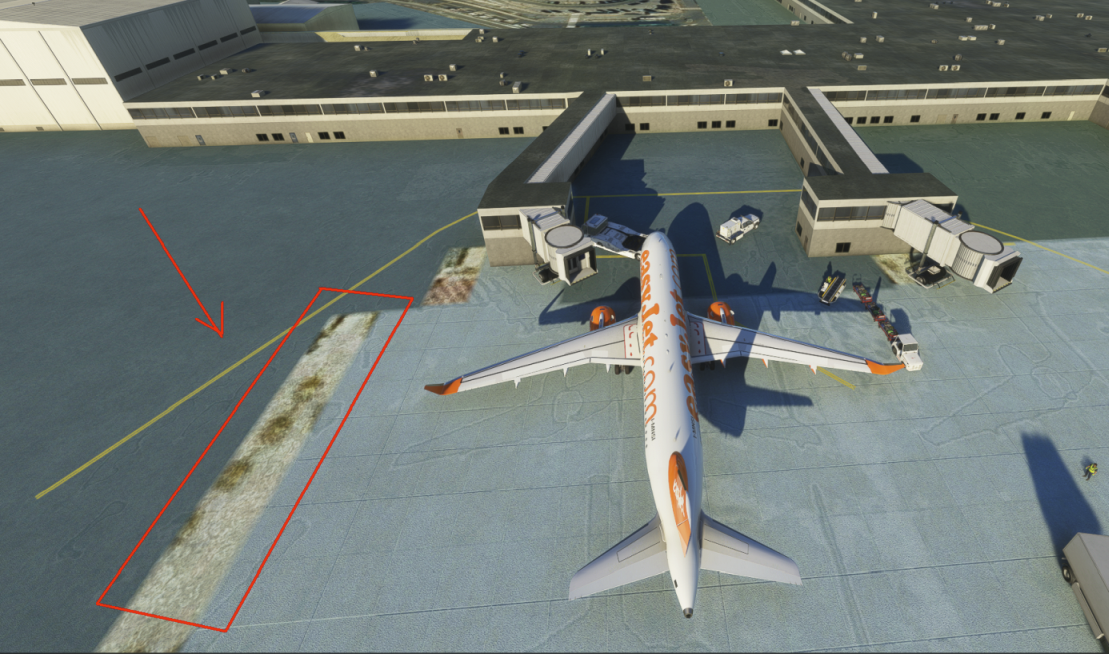

The aircraft stay in orginal gate position but the Jetways are lost, probably not still managed by ADE.
I remain available for any further test.



scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
OK but did you see my post above to change the delete flag for jetways. I tried this and it worked for me

Messages
34
Country
italy
I tried just now and it work also for me!
But I have a question, "Could it be that other objects are cleared leaving all flags to TRUE?"
Thanks



scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
the idea is that ADE hides all the base data and replaces it with the stuff in the project. At the moment ADE does not hide everything. I will make a list of what should be set to false. I should have done this already but didn't get round to it.
