MSFS Texture failed to convert [SOLVED]

Messages
26
Country
southafrica
I have a little mystery that I just cannot solve.

I have two buildings in Blender. I designed these buildings for FSX using FSDS, but I convert the MDL's to Collada files using Model Converter so that I can import them into Blender. This has so far worked flawlessly for several hundred objects. I have saved the building into GLTF format, again no issues, but when I compile the airport for MSFS using ADE or the Package Tool, then only this building refuses to compile. All the others work and they where all done in exactly the same way.

The error I get is this: FAILED TO CONVERT TEXTURE: path/filename.png

The Package Tool then fails to complete the build process. The funny thing is that the light map texture for the same building works. It is just the day texture that has issues.

If I remove the building, then the airport compiles without issues.

I am obviously missing something somewhere and it is obviously that the issue is with the texture, but I am at a loss! Can anyone point me where to look or try?

Regards,


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
5,725
Country
us-wisconsin
Attach the object and textures as a zip file so someone can see what the problem is...

Messages
26
Country
southafrica
I have solved this error and I am now posting the solution for learning purposes.

If you get this error FAILED TO CONVERT TEXTURE: path/filename.png while compiling your airport for MSFS then check the texture(s) you are using. The error should generate at the incorrect texture, but not always and you may need to check all of them!

Your textures MUST be perfectly square and that means 512 xx 512, 1024 x 1024, 2048 x 2048 or 4096 x 4096. Unlike FSX and P3D, there is no middle path. In my case, one of my textures was 1025 x 1025; just ONE pixel off and it kept me running in
the dark and pulling out my last bit of hair for hours! DO NOT MAKE THE SAME MISTAKE, OK?

Have fun!


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
5,725
Country
us-wisconsin
From the SDK:

Textures
When creating your textures, it is important to note that input texture dimensions must be a multiple of 4 pixels and be at least 8 by 8 pixels. Textures do not have to be square, as long as the sides adhere to the multiple of four rule.
...so 512 x 2048 is perfectly acceptable, as is 512 x 516, as is 512 x 512.

Messages
30
Country
bahrain

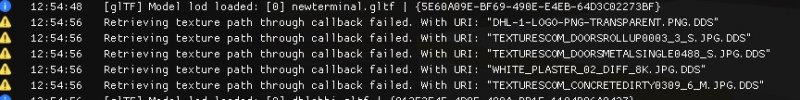

I am having a similar problem. After I fixed the image sizes the textures are still not showing up. I have attached the console screenshot of the error its giving me. Please help coz it doesnt seems to work for me. I have also attached the blender file.


Attachments

  • Screenshot 2021-07-17 125601.jpg
    Screenshot 2021-07-17 125601.jpg
    52.4 KB · Views: 153
  • Screenshot 2021-07-17 125841.jpg
    Screenshot 2021-07-17 125841.jpg
    72.4 KB · Views: 133
  • dhlblock.rar
    141.8 KB · Views: 71
