Using FSX object libraries in MSFS

rhumbaflappy

rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
6,514
Country
us-wisconsin
A quick way to use an existing FSX library in MSFS involves creating a package without using Devmode or fspackagetool.
Using the correct folder structure and contents (attached is a zip file of such a package folder}, just copy the FSX folders containing scenery and textures to the package folder.

I used my base FSX objects folder which I found here on my computer:
D:\Programs\Steam\steamapps\common\FSX\scenery\Global\
I copied the scenery folder and the texture folder to the fsxobjects package folder.



I then used MSFSLayout Generator to update the layout.json in the package, and then copied the mess to my MSFS Community folder. Done.
Now the FSX object libraries can be used in MSFS.

Brandon Filer's MSFSLayout Generator on GitHub


Attachments

Last edited:
Many thanks, Dick. :wizard:

This looks to be an even easier alternative to the MSFS "FSX Compatibility" mode methods you first described 11 Sep 2020 here: :idea:

www.fsdeveloper.com

MSFS20 - FSX objects in MSFS

You can use some FSX objects in MSFS as library objects. I extracted the ANI_grizzly_walk_sm.mdl from FSX' animals.bgl using ModelConverterX, as well as the ANI_grizzly_walk_sm.xml and copied the texture. The key seems to be found in the scene XML file: SCENERY...
www.fsdeveloper.com www.fsdeveloper.com

GaryGB

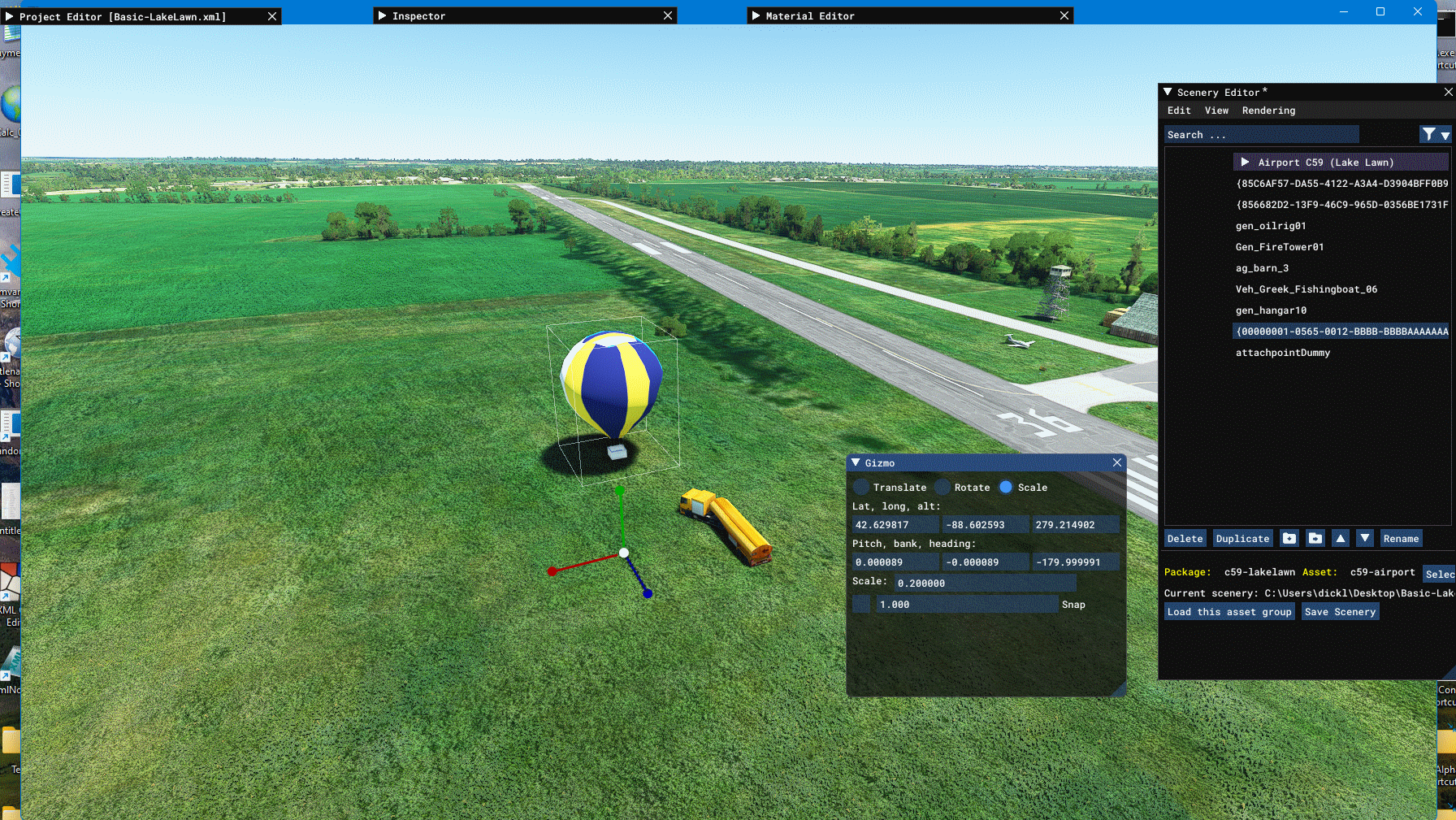

It is simpler. Some nl2000 library objects. (Make sure the BGL contains the text MDLX.

The same general principle works for SimObjects... but airplanes, rotorcraft, vehicles and boats don't work well, if at all.

rhumbaflappy said:
A quick way to use an existing FSX library in MSFS involves creating a package without using Devmode or fspackagetool.
Using the correct folder structure and contents (attached is a zip file of such a package folder}, just copy the FSX folders containing scenery and textures to the package folder.

I used my base FSX objects folder which I found here on my computer:
D:\Programs\Steam\steamapps\common\FSX\
I copied the scenery folder, and it's subfolders and contents to the package folder.
Click to expand...

AFAIK the non-Steam DVD retail store (FSX Standard / Deluxe /Acceleration / Gold) equivalent of that FSX_SE folder path is:

[Flight Simulator X install path]\Scenery\Global\Scenery\

[Flight Simulator X install path]\Scenery\Global\Texture\


rhumbaflappy said:
I then used auto-json to create the layout.json in the package, and then copied the mess to my MSFS Community folder. Done.
Now the FSX object libraries can be used in MSFS.

Brandon Filer's auto_json on GitHub

View attachment 82941
Click to expand...

IIUC, MSFSLayoutGenerator auto_json requires a "layout.json" file for input.

Also, MSFSLayoutGenerator auto_json will only write to a "layout.json" file for output.


On my computer, your example fsxobjects.ZIP shows only this:

fsxobjects folder
|_manifest.json file
|_ContentInfo sub-folder
....|_fsxobjects sub-folder
........|_Thumbnail.jpg file


Where does one get the "layout.json" file required for use with auto_json ? o_O


Thanks in advance for your further explanation of the process for those seeking a simple guide to avoiding MSFS' "XML Hell". :)

GaryGB

Last edited:
Hi Dick:

Sorry, but I must be missing something here; at the URL above, [ Code ] offers a ZIP download which contains no Auto_json.exe:

https://github.com/HughesMDflyer4/MSFSLayoutGenerator/archive/refs/heads/master.zip


However, within that Master,ZIP, the ReadMe.md file offers this URL:

https://github.com/HughesMDflyer4/MSFSLayoutGenerator/releases/tag/v1.1.0

...which links to a:

MSFSLayoutGenerator.exe

If that is run as Administrator, I get this CMD console message:

No layout.json paths specified.
Usage: MSFSLayoutGenerator.exe <layout.json> ...


Press any key to exit...


Where exactly do we get Auto_json.exe ? o_O


FYI: A Google search found a AutoJson on a French site that had a restricted or dead download link. :banghead:

AutoJSON

Logiciel pour compiler les fichiers de MSFS https://www.flightpilote.fr/threads/auto-json.3192/
www-flightpilote-fr.translate.goog www-flightpilote-fr.translate.goog

FS20 - Auto Json

Un outil de S3RIOUS qui créera automatiquement le fichier layout.json pour tous les fichiers du répertoire sélectionné. Il vous suffit d'exécuter l'outil à chaque fois que vous apportez des modifications en ajoutant de nouvelles textures, modèles, sons ou autre. Vous pouvez obtenir l'outil...
www-flightpilote-fr.translate.goog www-flightpilote-fr.translate.goog

GaryGB

Last edited:
Sorry about the reference to the vaporware auto_json.exe. You can use Brandon's MSFSLayoutGenerator.exe easily by making a blank layout.json as a text file. It will then fill it with the right info.

(...Our posts crossed on the server)

OK, by:

...copying all files within these (2) sub-folders:

[Flight Simulator X install path]\Scenery\Global\Scenery\

[Flight Simulator X install path]\Scenery\Global\Texture\


...into these corresponding target folder chains:

C:\Users\Admin\Documents\MyFSProjects\fsx objects\Scenery\Global\Scenery\

C:\Users\Admin\Documents\MyFSProjects\fsx objects\Scenery\Global\Texture\

...then:

creating an empty layout.json in the root of that same [fsx objects] folder chain path

...and running this batch file:

Code:
MSFSLayoutGenerator.exe "C:\Users\Admin\Documents\MyFSProjects\fsx objects\layout.json" "C:\Users\Admin\Documents\MyFSProjects\fsx objects\layout.json"

PAUSE

I get this (over-written) layout.json in the ZIP attached below (which IIRC, represents only FSX default objects).


Now I'm going to try this:

rhumbaflappy said:
I then used auto-json to create the layout.json in the package, and then copied the mess to my MSFS Community folder. Done.
Now the FSX object libraries can be used in MSFS.
Click to expand...

...with the resulting (non-compiled "package" ?) file / folder structure placed into the \MSFS_Packages\Community sub-folder. :stirthepo


UPDATE: Hmmm... "no cigar" thus far; I'll try a fresh scenery project package to see if I can find / place any of the FSX objects.

GaryGB


Attachments

Last edited:
I cleaned up the initial post, added a visual aid, and changed the attached zip... which now includes a blank layout.json.

This is great! Someone should do a Friday Harbor redux, you know, Acceleration/Steam default and do it complete with the Air Creations trike air start.



Hi Dick:

Could you elaborate on where and how we are intended to find / select / place these objects in DevMode GUI after the above type of (non-compiled "package" ?) file / folder structure is placed into the \MSFS_Packages\Community sub-folder, and we then run MSFS ?

Thanks again for your initiative with this FSX scenery objects option. :)

GaryGB

Last edited:
Hi again:

I finally got some time to adapt Dick's workflow above, and I am very pleased with the results. :cool:



Many thanks again, Dick for sharing your insights from testing this workflow.


GaryGB
