A380-800 Modeling Issue

S

Samzinoboss

Messages
8
Country
england

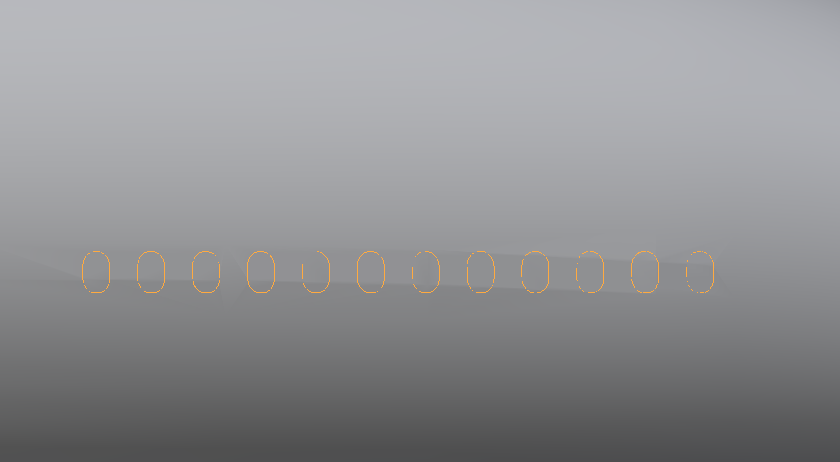

Hola Guys, Ive been here before about my A350 model which has since then been completed however im running into an issue again of denting when I knife project my plane windows on. The knife project creates these dents and sharp edges around the area which looks unpleasant, ive checked for many solutions but still haven't found any from anyone elses threads, maybe im not looking right. If anyone knows or has links to where I can find my solution that would be great. Ive attached screenshots of the affected area and wireframe as well as a small preview on the plane itself(Wings are modified slightly on the curve). Thanks


Attachments

  • Screenshot_8.png
    67.4 KB · Views: 377
  • Screenshot_9.png
    32.4 KB · Views: 395
  • Screenshot_10.png
    71.4 KB · Views: 388
  • Screenshot_11.png
    34 KB · Views: 387
  • Screenshot_12.png
    36.5 KB · Views: 408
  • Screenshot_3.png
    54.7 KB · Views: 396
  • Screenshot_4.png
    118.9 KB · Views: 432
I'm having a similar issue when I'm cutting out one of my cargo doors, and I too am yet to find a solution.

When looking at your screenshots (and dents) the first thing that jumps into my mind is the Shrinkwrap modifier inside Blender:
Here are some articles about it:
- https://docs.blender.org/manual/en/dev/modeling/modifiers/deform/shrinkwrap.html
- https://www.blendernation.com/2016/04/14/shrinkwrap-modifier-hard-surface-modellers-best-friend/
- https://www.pluralsight.com/blog/tu...ine-times-faster-shrink-wrap-modifier-blender

Blender shrinkwrap modifier video:
-

This is a nice tutorial series about most Blender modifiers:
-

With an aircraft this size, I wouldn't cut the windows. It will look better with painted windows on the textures and you won't run into these smoothing issues.

If you really want to cut out the windows, to minimize the creases, you should try creating a thin strip of polys around them. Maybe cut the windows oversize and then inset faces into them. But it will be a struggle because they are not set nicely between longitudinal edges of the fuselage.

For the doors, again you need a thin line of polys around them to minimize the problem. Try creating extra edges vertical edges close to the sides of the doors.
