Can anyone help me to diagnose why MSFS refuce to load my textures

E

ErlandMatz

Messages
24
Country
sweden
Hi There.
I have a problem when building a Barn. The textures I use (from poliigon) cannot be loaded in MSFS.
It seems that he (msfs sdk) totally ignore the images. and I have no clue whats happen.

The textures is three PBR One diff. one Comp and one normal (See below) in png format 1024 * 1024.
The textures works fine in Blender
The stucture is right - I can promise bcs other textures is loaded as it should.

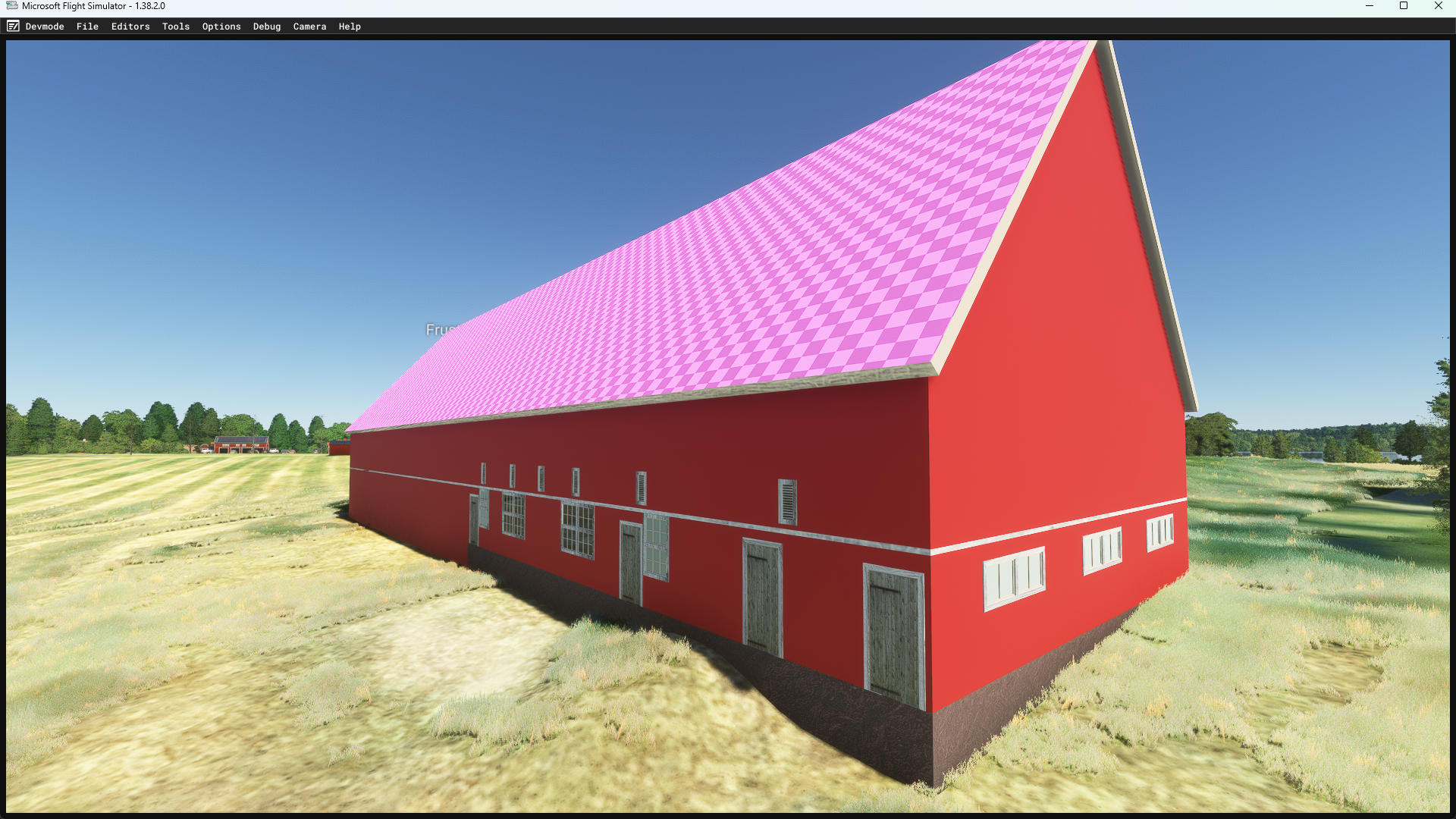

Below the result in MSFS2020 (I can see that some textures is loaded for doors and ground but not for roof)

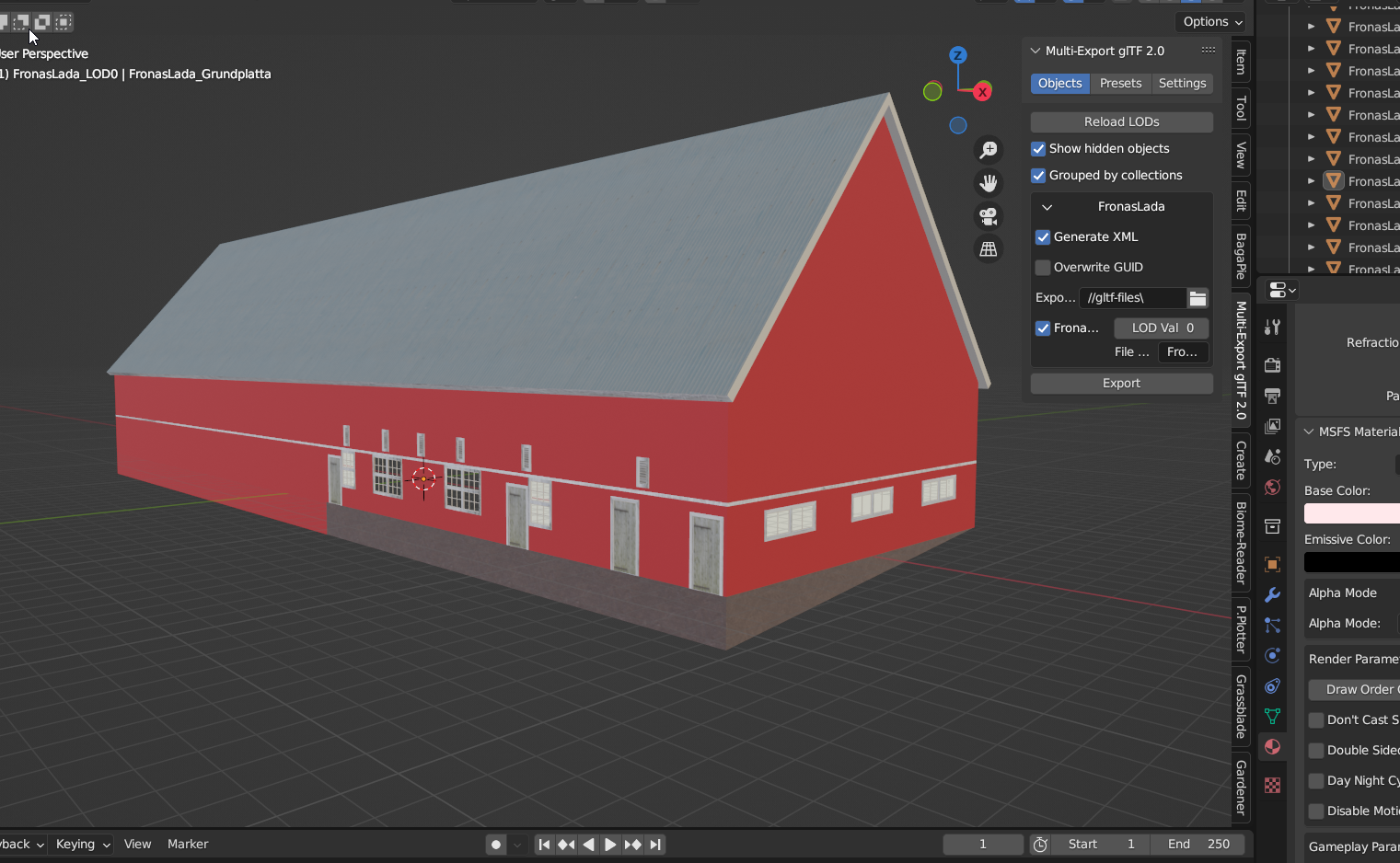

Below here - The model in Blender (here is all OK)



Below I attach the files that is not working. Unfortunatly I cannot attach the blend-file.

corrugated_iron_03_diff_1k.pngcorrugated_iron_03_nor_dx_1k.pngcorrugated_iron_03_compAPRM_1k.png

Here is the log from Project editors - Build all


Is there anyone that can help me?
thankful for all ideas you have.
// Erland


Attachments

  • corrugated_iron_03_diff_1k.png
    1.5 MB · Views: 52
  • corrugated_iron_03_nor_dx_1k.png
    2 MB · Views: 46
  • FronasLada Logg vid Build All.txt
    FronasLada Logg vid Build All.txt
    4.9 KB · Views: 37
The textures are OK for me. So it must be something not right in Blender. Are all 3 textures in the right texture folder in the PackageSources? If so, just zip the gltf file, attach it, and I'll take a look.

Hi and thank you that you take your time to test this.

Well it is working fine now. What I did was following.
1: in the same SDK session - close my Barn-project.
2: Opened a test-project in the same location.
3: Build in blender a small 10 vertex house with the roof-texture from the Barn that not work.
4: Export the projekt and it works fine.
Now the Barn and the small house is on the same screen. Barn with mässing texture and small house with a roof as experter.
5: Close the test projekt.
6: Reopened the Barn-project.
7: Huereka !!!!!!!! The roof was in place.
8: Now I worked a lot and have done a lot of new exports and it works fine.

Can it be that the compile of the texture to DDS-file have earlier failed but is store in some cache somewhere. In my test-project then (in the same session) this DDS was replaced and after this it works fine.
Maybe the same could be achived with a deletion of _PackageInt.? In the Barn-project.

I am now happy that it works fine.
Thanks all thar read this and
Happy Build and Flying
Erland
