ModelConverterX Drawcall Minimizer Texture Size?

Rotornut44

Rotornut44

Resource contributor
Messages
670
Country
us-florida
Arno,
Maybe you can shed some light on this. I'm attempting to optimize some scenery models that have way more drawcalls than they should. I've converted a few models already without any issues, however on a few I've tried to convert, it seems like the drawcall prediction function is acting up a bit..

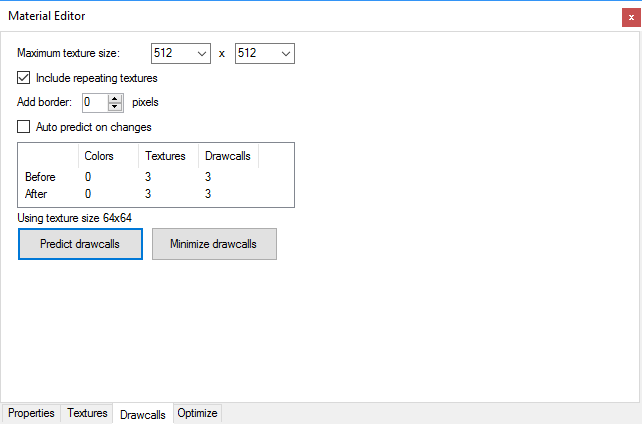

For example. The model I'm currently trying to optimize has 3 textures. Sizes 256x128, 512x256, and 64x64. All of these textures should be able to fit on a 512x512 texture sheet, however when I set the max texture size in the window, it uses a texture size of 64x64 instead. This keeps all 3 drawcalls, making absolutely no changes.


(Using the latest dev. release)

Hopefully this post makes sense. Getting late here.. (Or uhh.. early I should say..)

-CB

Hello,..

If any of the 3 textures that you referring to has different settings from 1 to the others (or they are all requiring different settings from each other) then they will not combine into 1 texture sheet. For example,... do any of them have transparency within them or require it to be? Also,... the organization of the 3 might fit but they will not flip sidewise I don't believe. Arno, will have to confirm that. Looking at the textures will help in determining the possible reasons.

Last edited:
Hi,

Material attributes or transparency don't prevent the combining on one sheet. But I suspect that they might be tiled on the model and then they might need more space on the combined sheet.
