One click hangar

Hi Morton,

no, I have only 8 menus without plugins or "Erweiterung" ("Extensions" in German),
but there is a subfolder called "ShippedExtensions". Is this the subfolder for One Click Hangar?

Hi, the ShippedExtensions is not a part of One Click Hangar.
Are the One Click Hangar files located in %AppData%\SketchUp\SketchUp 2015\Plugins\ folder?

I have all of the hangar, hangar1, 2 and 3 installed. When I run the Plugin it says there is a later version available. Is the hangar dev.zip on the first page the latest? How do I install the hangar dev.zip files? Do I just allow all of them to overwrite the older version files? I see a lot of new files that were not in the original version. I read somewhere in this thread that there was an option to use ft instead of cm. Does the dev version include this option? Sorry for all the questions but I am new to Sketchup. Bob.

charlymorton said:
Are there any other rb files in this folder? By default there should be a couple of rb files and some folders.
Click to expand...

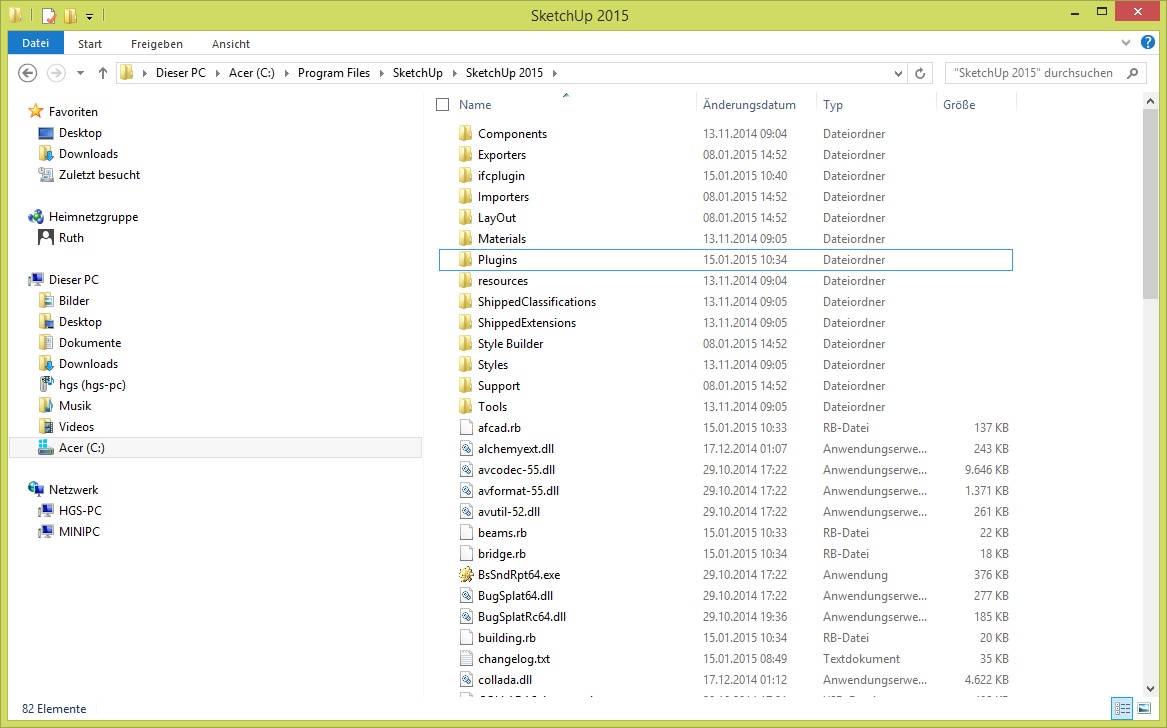

of course only those rb files of "One Click Hangar", because there was no "Plugins" folder before I created it.


For SketchUp 2014 and SketchUp 2015 the Plugins folder has to be in %AppData%\SketchUp\SketchUp 2015\Plugins\ folder (e.g. c:\users\<username>\AppData\Roaming\SketchUp\SketchUp 2015\Plugins\) and not under c:\program files\. Could you try to move the files to this folder and see if they appear in SketchUp?

familton said:
I have all of the hangar, hangar1, 2 and 3 installed. When I run the Plugin it says there is a later version available. Is the hangar dev.zip on the first page the latest? How do I install the hangar dev.zip files? Do I just allow all of them to overwrite the older version files? I see a lot of new files that were not in the original version. I read somewhere in this thread that there was an option to use ft instead of cm. Does the dev version include this option? Sorry for all the questions but I am new to Sketchup. Bob.
Click to expand...

Hi Bob,

The hangar dev, and hangar1, 2 and 3 zip files in the first post are the latest published files for the plugin. If you install hangar dev.zip, you do not need the files from hangar.zip.
The option for feet and inches has temporarily been removed from hangar dev.zip due to redesign of the dialogue boxes. I hope to put them back in soon.

charlymorton said:
For SketchUp 2014 and SketchUp 2015 the Plugins folder has to be in %AppData%\SketchUp\SketchUp 2015\Plugins\ folder (e.g. c:\users\<username>\AppData\Roaming\SketchUp\SketchUp 2015\Plugins\) and not under c:\program files\. Could you try to move the files to this folder and see if they appear in SketchUp?
Click to expand...

nearly correct, thanks.
It was necessary:

c:\users\<username>\AppData\Roaming\SketchUp\SketchUp 2015\Sketchup\Plugins\

But now all works fine!

thanks a lot

How do I create a standard hangar without doors?

I have achieved this in the past but I no longer seem to have the facility.

Using SketchUp 8.0.16846.

In fact I am totally confused.

Using this information:



Varietion in textures gives either stacked doors or no doors:





If I use red brick wall texture, no model is created.

Hi George. Hangar without doors isn't something I have implemented. If the doors aren't created with you select red brick wall, it could be due to a missing texture file. If you enable the Ruby Console from Window--Ruby Console, it should display an error when it fails to draw the door, which can help to identify the issue.

Do you wish to create a hangar with no doors or closed doors?
If you set the door folding level to 90, it will draw the hangar with a closed door (you can change the door type as well).
If you want to create a hangar with no doors, the best way at the moment is to create a hangar with the default doors, right-click it and select Explode. This will split the hangar into one object for the main hangar structure and one for the door structure. You can then select the door structure and delete it.

I hope this helps.

Thanks,

With these parameters:





This is what the Ruby Window shows:

Error: #<NoMethodError: undefined method `size=' for nil:NilClass>
G:/One-Click-Hangar/Plugins/hangar.rb:779:in `standalone_hangar'
G:/One-Click-Hangar/Plugins/hangar.rb:775:in `each'
G:/One-Click-Hangar/Plugins/hangar.rb:775:in `standalone_hangar'
G:/One-Click-Hangar/Plugins/hangar.rb:80

No model is created and no mention of missing textures.

As I say, sometimes, depending on the texture selection, there are (open) doors, sometimes there are no doors and sometimes there is no model.

I have been able to create a row of hangars with brick walls.

Last edited:
Could you try to download the hangar dev.zip file from the first post in this thread. Just noticed you're using an older version of the One Click Hangar tool.

The latest development version should be compatible with SketchUp 8, however I suggest you take a backup of all the One Click Hangar related .rb/.och files before downloading the latest version.

I am not able to recreate the issue in the latest version of One Click Hangar, however I am using SketchUp Make 2015. Unfortunately I do not have SketchUp 8 on my new laptop and I believe it is no longer available on sketchup.com.

Please let me if it resolves the issue.

Edit: Forgot to say. If the latest version does not work on SketchUp 8, I'll do my best to resolve any compatibility issues, so you won't have to update to any of the later (and incredibly much slower) versions.

Hmm, exactly the same ruby output. (There were several different dialogs).

Should I update SketchUp?

Here is the directory list:

Directory of G:\One-Click-Hangar\Plugins

18/03/2015 19:35 <DIR> .
18/03/2015 19:35 <DIR> ..
30/01/2013 22:52 3,744 0B5_Parking.och
30/01/2013 21:38 4,967 92W_Parking.och
11/08/2014 16:21 139,358 afcad.rb
22/06/2014 08:32 21,703 beams.rb
22/07/2014 11:53 17,648 bridge.rb
23/07/2014 21:50 19,784 building.rb
14/02/2013 09:44 15,183 changelog.txt
16/07/2014 22:43 311,717 development.rb
10/04/2014 15:07 <DIR> Examples
04/12/2012 10:55 2,495 examples.rb
26/06/2014 12:57 6,288 extension examples.txt
27/06/2014 20:12 1,883 extensions.och
08/02/2013 05:24 3,000 extensions.txt
24/04/2014 12:31 10,781 furniture.rb
10/08/2014 05:21 718,859 hangar.rb
18/03/2015 19:35 <DIR> HangarForms
03/07/2014 13:37 175,215 hangar_doors.rb
11/02/2013 22:39 2,530 licence.txt
10/04/2014 15:07 <DIR> Ocean
04/12/2012 10:55 1,159 ocean_extension.rb
22/06/2014 13:59 93,935 ocss_extensions.rb
17/07/2014 13:43 20,552 ocss_functions.rb
30/01/2013 17:12 15,360 OneClickHangar.dll
12/09/2013 13:49 17 settings.och
10/04/2014 15:09 <DIR> TextureFiles
30/08/2013 12:58 1,696 textures.och
10/04/2014 15:07 <DIR> Utilities
04/12/2012 10:55 1,253 utilities.rb
02/07/2014 03:05 189 uvmaps.och
24 File(s) 1,589,316 bytes
7 Dir(s) 69,921,722,368 bytes free

Last edited:
Oops, just noticed I didn't select "No floor" in the texture option, and I get an error now, albeit a different one. Before trying with the latest SketchUp version, could you please try to select a texture for the floor?

Also, this may be a stupid question, but did you restart SketchUp after downloading the latest script files?

In the meantime I am going to fix the "No floor" error.

charlymorton said:
Also, this may be a stupid question, but did you restart SketchUp after downloading the latest script files?
Click to expand...

Err, yes.

I'll try selecting a floor texture. I am using photo-textures so I set the hangars at -0.1 metres, it shouldn't matter whether there is a floor or not.

I still don't understand why I get no doors.

Last edited:
Thanks, if you get the error again, could you please let me know what the Ruby Console output is, as the line numbers in the error above (775, 779 & 80) should be different.

OK,

With these textures:



The Ruby output is:

Error: #<NoMethodError: undefined method `size=' for nil:NilClass>
G:/One-Click-Hangar/Plugins/hangar.rb:660:in `standalone_hangar'
G:/One-Click-Hangar/Plugins/hangar.rb:656:in `each'
G:/One-Click-Hangar/Plugins/hangar.rb:656:in `standalone_hangar'
G:/One-Click-Hangar/Plugins/hangar.rb:34

and no model is created.

Thanks, I can recreate the error now when deleting the texture file for the red brick wall. Could you double-check you have the suht_brick_red.jpg file listed in the TextureFiles folder? If not, you can get the file by downloading Hangar 1.zip in the first post.
