P3D v4 Shift and Rotation on Image causes wild distortion

Messages
2
Country
us-florida

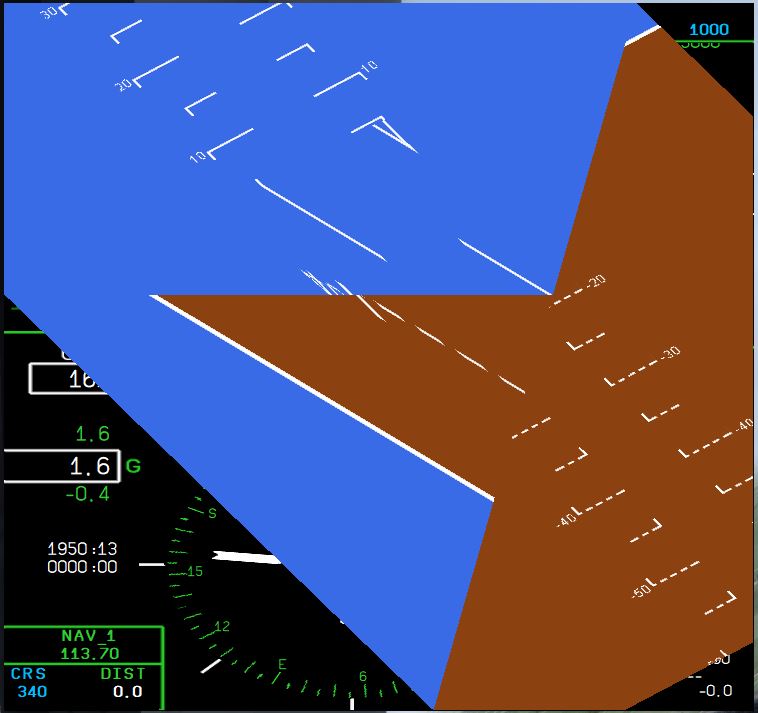

I'm new to XML gauge design, but this one has me completely stumped. I have an ADI bitmap for an electronic flight display. If I apply a Shift (or variable vertical FloatPosition) for pitch, no problem. As soon as I add a rotation for bank though, I get bizarre distortion that happens with or without the Shift at any combination of bank and pitch, even straight and level. The screenshot has the ADI image on top for clarity (the rest of the gauge is unaffected), at about 35 degrees bank and 5 degrees pitch down. The original bitmap was 600x2400, but even cutting it in half to 600x1200 doesn't fix the problem.
I've tried all combinations of order in the code, even a separate element within an element, with the Shift or Rotation applied to the top level or next level element, but no change. Limiting the output to +/- pi or 2*pi had no effect. Changing <PointsTo> had no effect.
Do XML gauges just have a limit to how large an image can be to rotate before it can't handle it? Relevant XML is below. Full code attached.

For comparison, a different method using 2 rectangles and a line worked perfectly, but that makes showing pitch bars and numbers a lot more complicated. It's in the full code.

Code:
<?xml version="1.0" encoding="UTF-16"?>
<SimGauge.Element id="ADI bmp">
    <FloatPosition>282.000000,202.000000</FloatPosition>
    <Image id="ADI2.bmp" Name="ADI2.bmp">
        <Axis>300.000000,600.000000</Axis>
        <Bright>True</Bright>
        <Bilinear>False</Bilinear>
    </Image>
    <Rotation id="Rotation">
        <PointsTo>NORTH</PointsTo>
        <Expression id="Expression">
            <Minimum>-3.141593</Minimum>
            <Maximum>3.141593</Maximum>
            <Script>(A:ATTITUDE INDICATOR BANK DEGREES, radians)</Script>
        </Expression>
    </Rotation>
    <Shift id="Shift">
        <Scale>0.000000,1.000000</Scale>
        <Expression id="Expression">
            <Script>(A:ATTITUDE INDICATOR PITCH DEGREES, degrees) 10 *</Script>
        </Expression>
    </Shift>

Thanks for any help.

--Russell


Attachments

  • Capture.JPG
    55.5 KB · Views: 97
  • PFD_XML.txt
    64.5 KB · Views: 92
Messages
440
Country
us-wisconsin
Just an idea, maybe there is an over zealous ( too large in width ) text area that is not being used or needed, impeding on the AH drawing.
The horizontal tear ( of the triangle tear ) kind of gives a clue.
With this, layering of <Elements> is everything.
Sorry couldn't help more, FSX schema gives me a migraine.

Messages
2
Country
us-florida
Just an idea, maybe there is an over zealous ( too large in width ) text area that is not being used or needed, impeding on the AH drawing.
The horizontal tear ( of the triangle tear ) kind of gives a clue.
With this, layering of <Elements> is everything.
Sorry couldn't help more, FSX schema gives me a migraine.

All of my GaugeText objects are in use and are only as big as needed (size less than 150x20 and 16-24 FontHeight). And this tearing was happening even before I added most/all of the GaugeStrings--the ADI was one of the first elements I added. The ADI image is in its own element and the tearing happens no matter where among the other elements I put it.
