Surface empty in FSX?

W

Wenjun

Messages
3
Country
china
I create a airport terminal model in 3D Max and then export to the Gmax, then I want to export a MDL file from gmax and put it in into FSX by ADE.

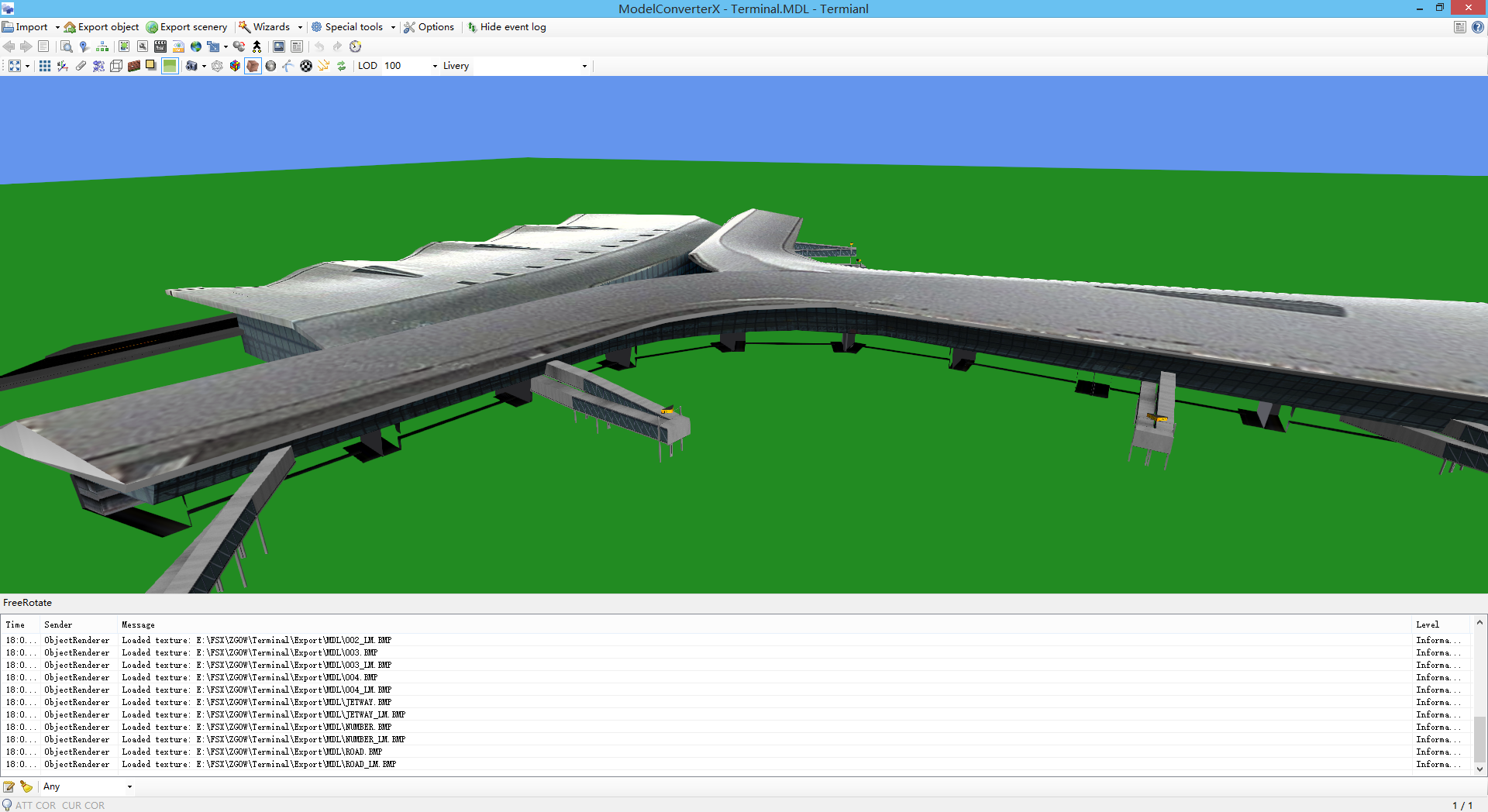

The model looks good both in Gmax and 3D Max:

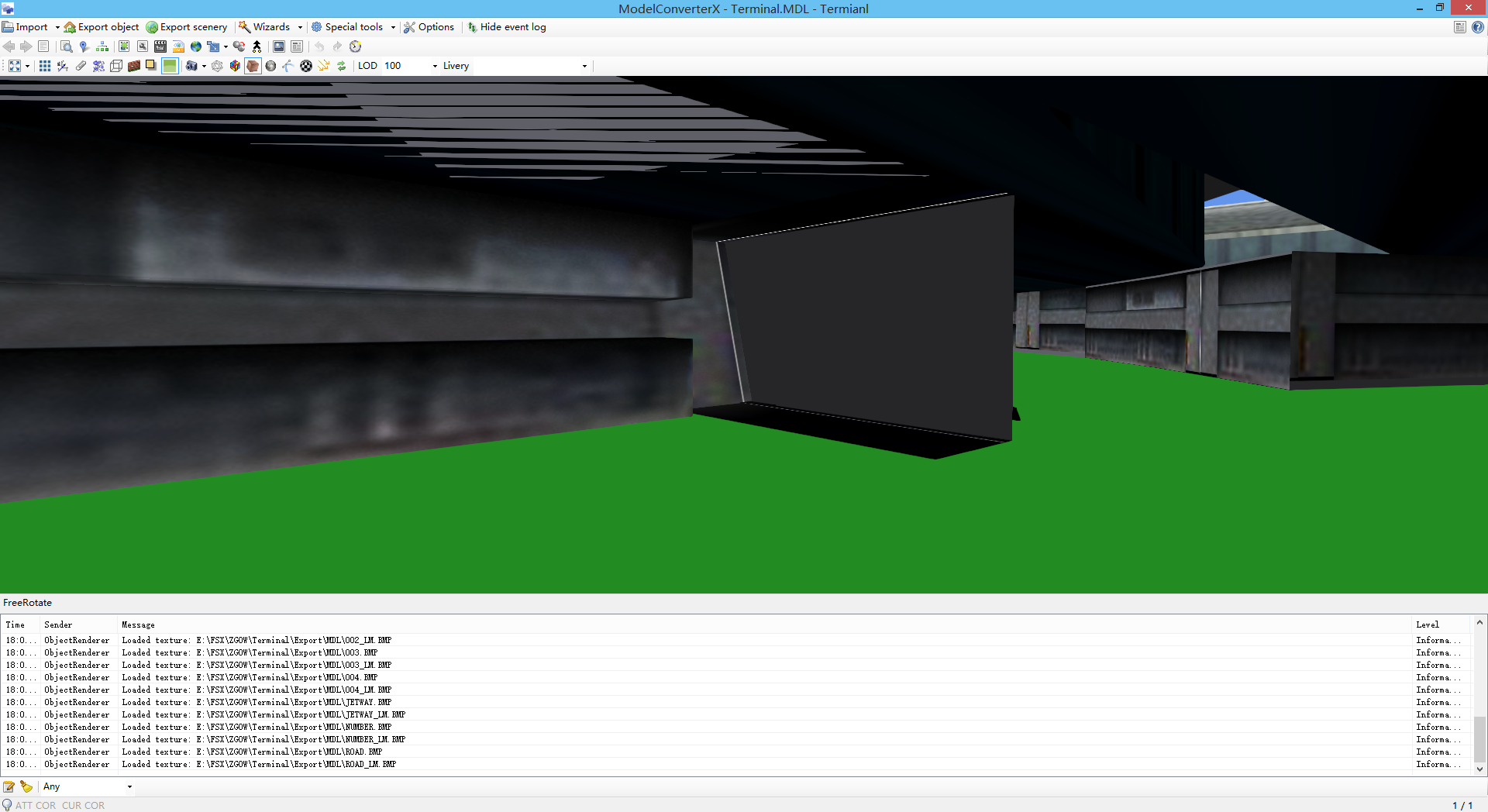

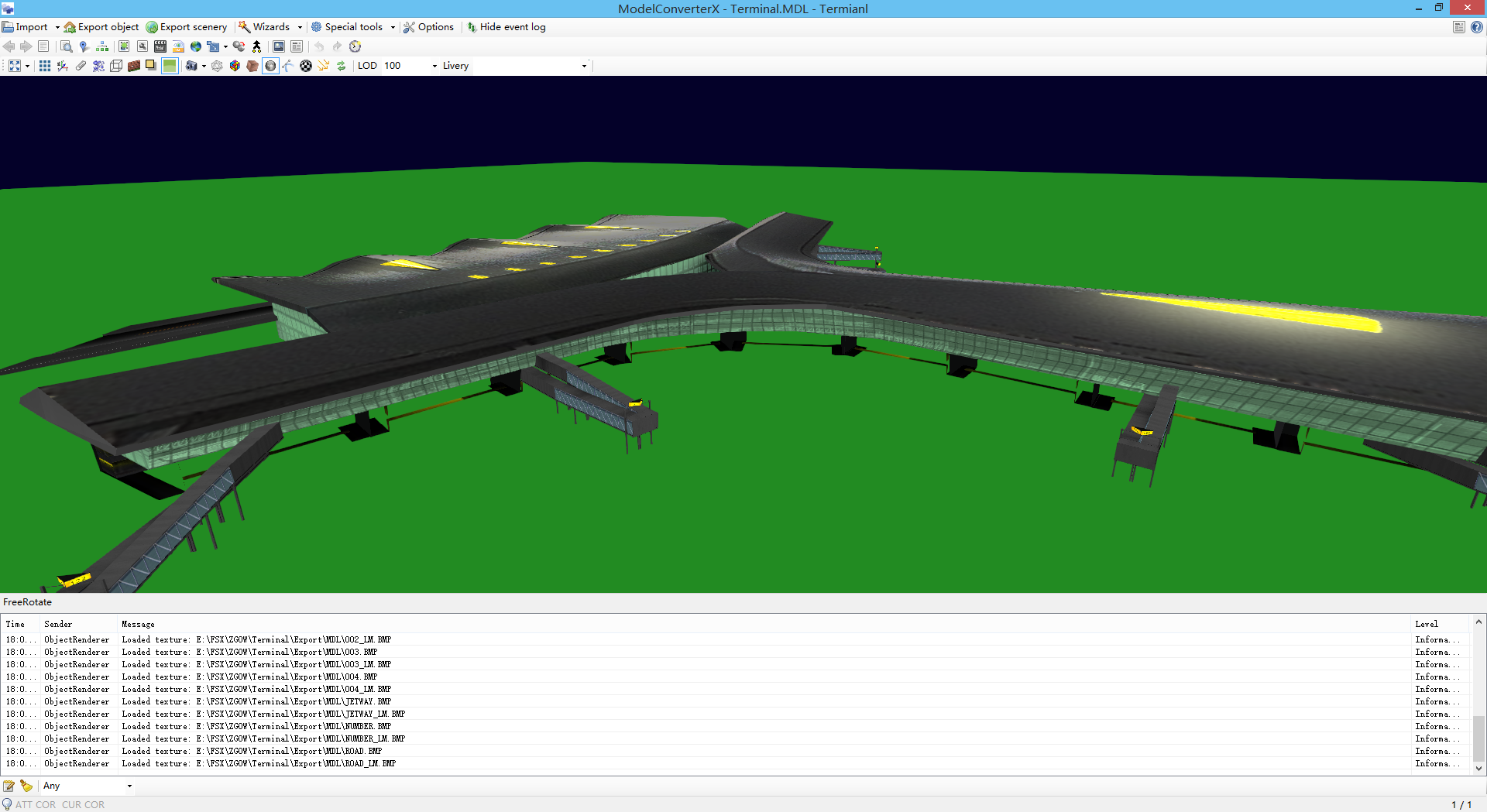

but when I put it in the ModelConvertX or FSX, some surface look empty, but when I look inside, it's normal. Can I repair this problem in Gmax?





Thanks very much
Wenjun

In the listing below the MCX pictures, do you get a message that any texture failed to load? If so, then there is a problem with that texture.

If not, click on the Material Editor and find the missing texture in the list. Does it display in the little box properly? Check the Highlight Selected box and click on that material to select it. Do those areas turn red in the model display?

I think you have to flip Normal of the polygons that you can see inside (but not outside). Choose Element and click on what you want then click on Flip Normal.
