MSFS Texture issues on some systems

K

karlo922

Messages
171
Country
germany
Hi,

I've created the airport EDER (see showcase if desired). On my system (RTX2070 Super) and also on other systems, everything is looking fine:



But on the systems of some others (e.g. one with GTX 970), all my own created textures (aprons and centerline) seems not to work correctly. They were done as new materials.
The centerline is completely missing and the apron texture got white.



But even if I change all my settings to LOW, on my system everything stays fine.

Attached are my materials as source and compiled DDS.

Do you have any idea what the problem could come from? I cannot reproduce this on my own system.
If you need anything more, just tell me what I shall upload.

Thank you very much!


Attachments

  • materials.zip
    162.2 KB · Views: 114
  • compiled_mymaterials.zip
    86.2 KB · Views: 102
thetford569

thetford569

Messages
235
Country
unitedstates
Risuali45 said:
hello i had the same issue as you but this post helped me out .It turns out you need to rename your modellib in the project editor as it causes conflicts when people have a lot of sceneries in the community folder https://www.fsdeveloper.com/forum/t...ing-after-building-package.449275/post-857640
Click to expand...

Did you figure out how to rename the modellib in the project editor? I have looked and I can't find any way to change the generated default name of the modellb.bgl - I tried manually re-naming my modellib.bgl and my buildings all went away when I tried that.

K

karlo922

Messages
171
Country
germany
thetford569 said:
Did you figure out how to rename the modellib in the project editor? I have looked and I can't find any way to change the generated default name of the modellb.bgl - I tried manually re-naming my modellib.bgl and my buildings all went away when I tried that.
Click to expand...

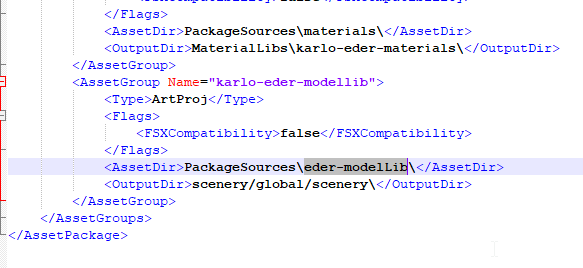

Hi, it's simple: Just give the folder another name. So I did it directly in the XML, maybe this also works inside the development view:

2020-09-27 10_58_19-Window.png


If you then build the packge (I always now do it outside DevMode with packagetool.exe and "-rebuild" option)

The file in the package seems to get that name then automatically:
2020-09-27 10_57_59-Window.png

thetford569

thetford569

Messages
235
Country
unitedstates
karlo922 said:
Hi, it's simple: Just give the folder another name. So I did it directly in the XML, maybe this also works inside the development view:

View attachment 62718

If you then build the packge (I always now do it outside DevMode with packagetool.exe and "-rebuild" option)

The file in the package seems to get that name then automatically:
View attachment 62719
Click to expand...
Thank you! I will try this when I have a chance this week. I have tried a million things and never did I think that changing the folder name would have any effect on the name of the file. I’ve changed all kinds of other names. Lol

A

andres291

Messages
6
Country
spain
karlo922 said:
Hi, it's simple: Just give the folder another name. So I did it directly in the XML, maybe this also works inside the development view:

View attachment 62718

If you then build the packge (I always now do it outside DevMode with packagetool.exe and "-rebuild" option)

The file in the package seems to get that name then automatically:
View attachment 62719
Click to expand...
1 and 1/2 years later. Yes, I had this same problem, thanks to you I have finally solved it.
