Weird Looking Edge Light.

Messages
45
Country
nigeria

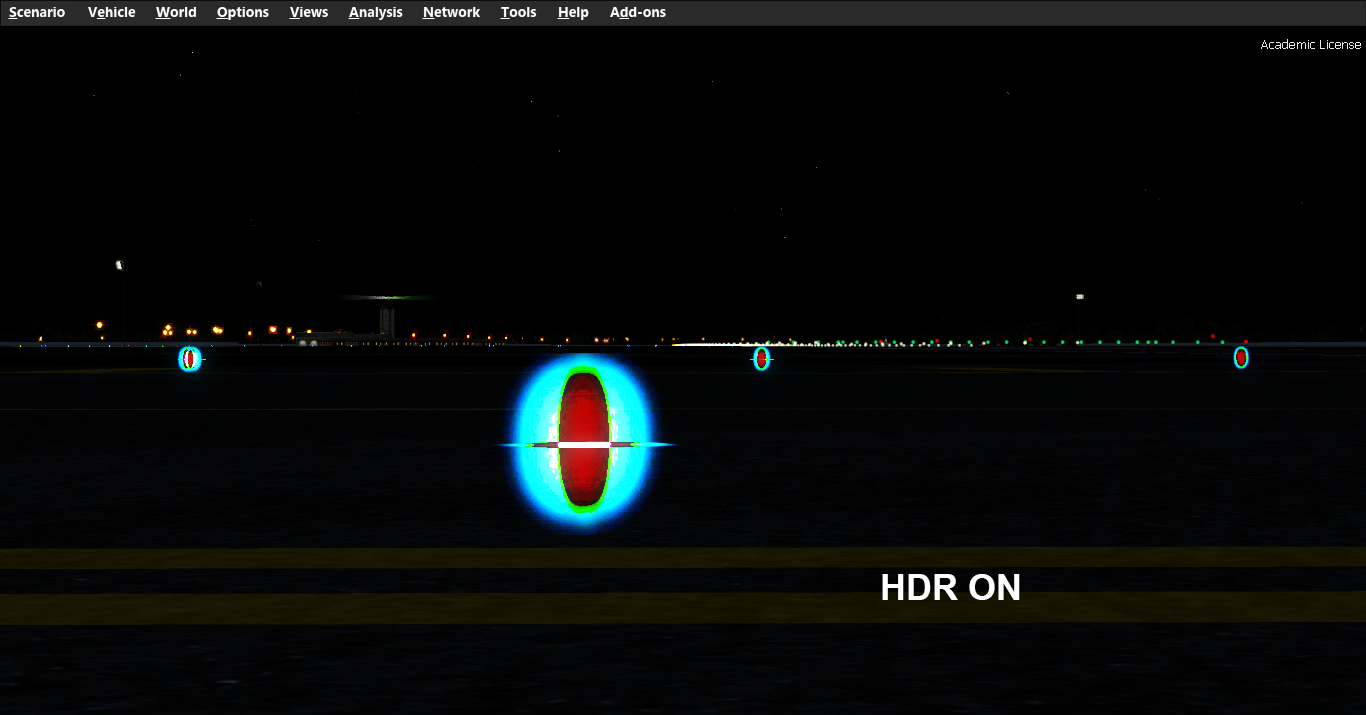

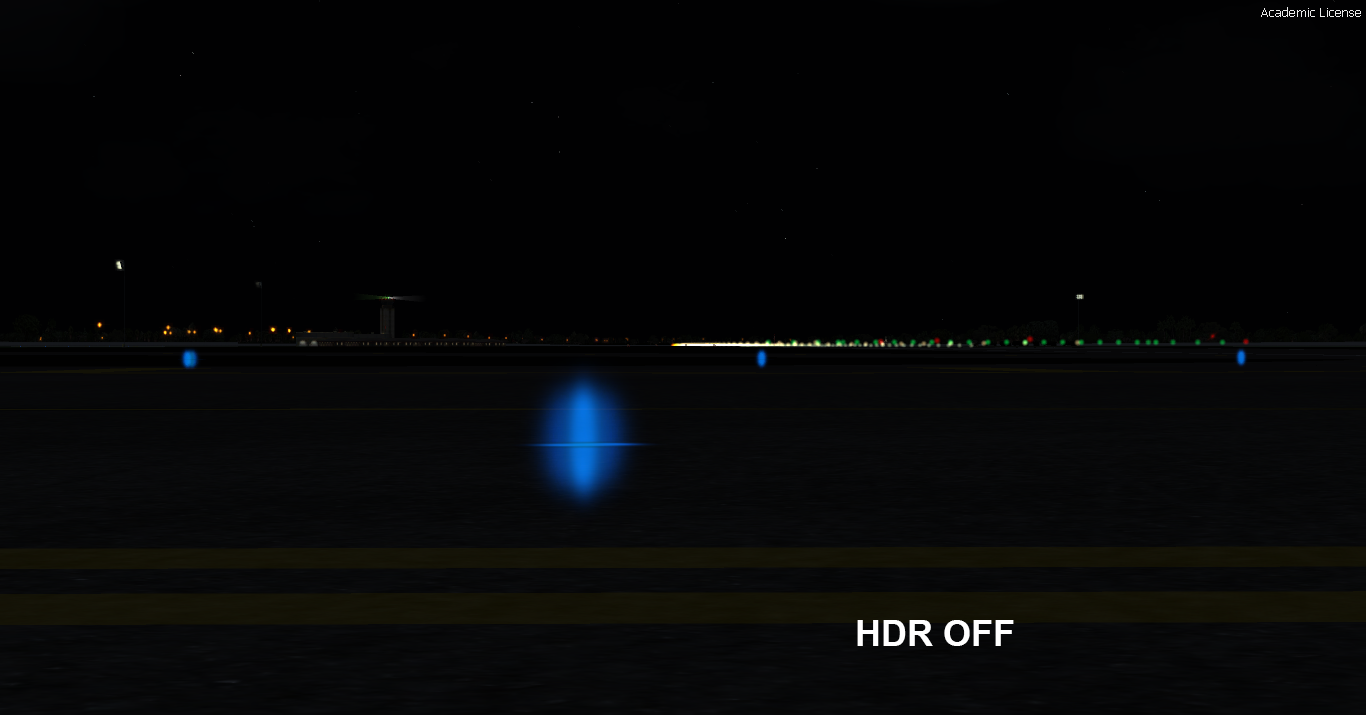

I'm trying to create custom taxiway edge lights for my scenery but whenever I turn on HDR in P3D the lights look horrible. Please help :) I have attached screenshots of the problem.






Messages
45
Country
nigeria
So with th


@Raheem Adeleke
So with the source blend to ONE I can see them better but I can see the shape of the square transparent texture. Anyway you can share your transparent texture so I can conduct an experiment ?

View attachment 62401

Thanks.

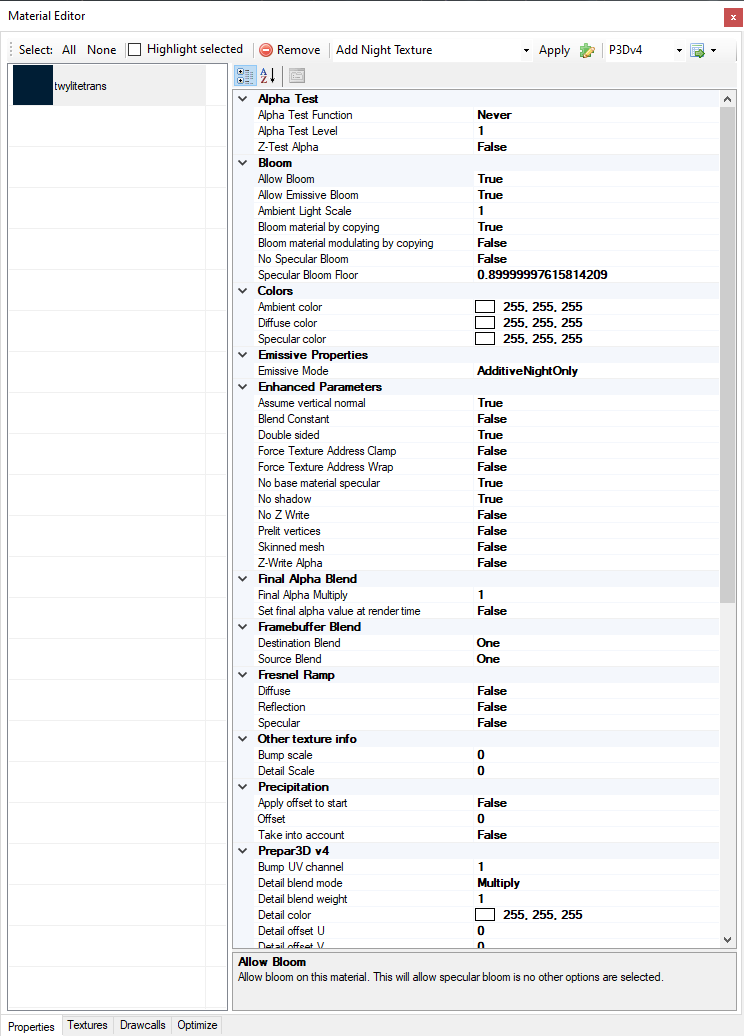

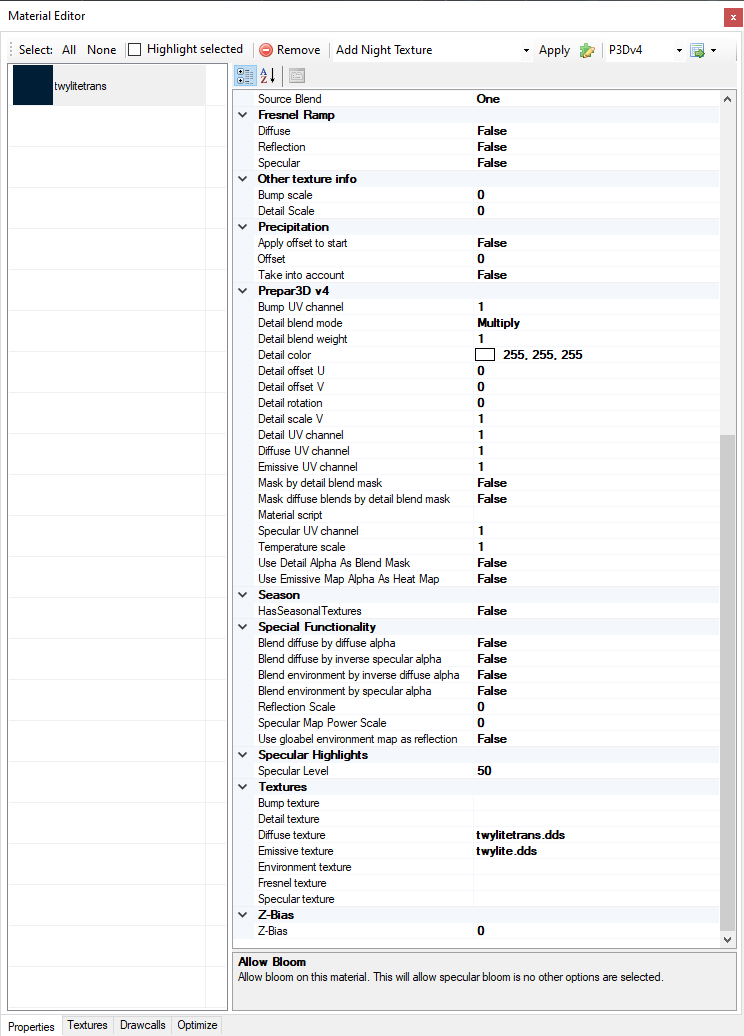

I use two textures a black texture (which displays nothing) for day and the light texture for night, destination and blend source are set to "one". I have attached the textures


Attachments

  • twy_night.zip
    16.6 KB · Views: 81
Messages
253
Country
us-newyork
this glow happens during sunrise, and sunset. I wonder how to eliminate it. I feel that I've attempted most options within MCX. It's the sim lighting the transparent alpha day time texture. Is there anyone that can help me with this?
Thanks.

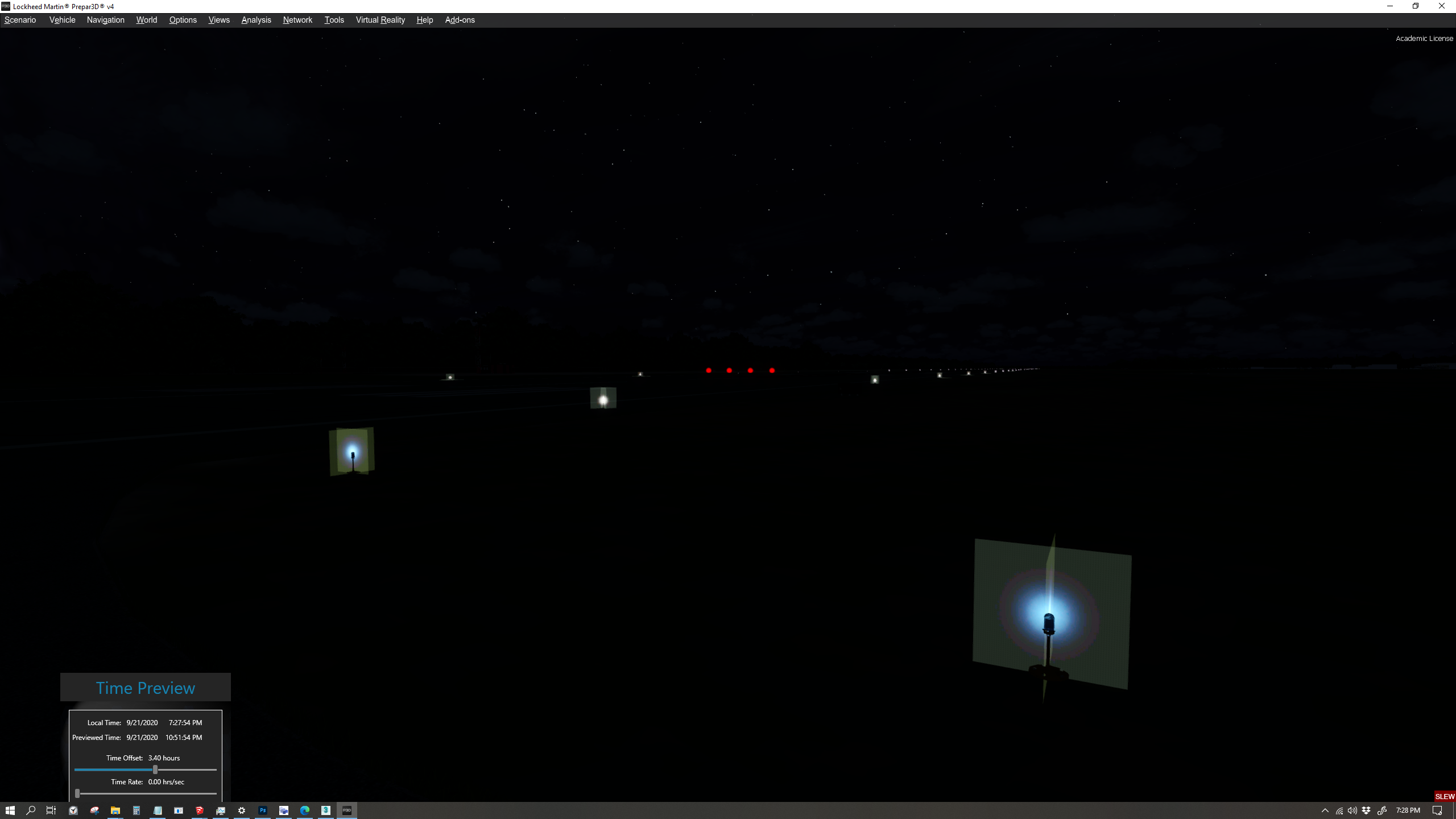

Screenshot 2020-10-02 20.32.38.png

Messages
253
Country
us-newyork
How do the two framebuffer blend settings look?
If both are set to one you don't need alpha in your textures.
They aren't both set to one. Both images are transparent. The day one is InvSrcAlpha and the Source Blend SrcColor.

So I can remake my maps with no alpha and just black? that way I can tune them both to one. ?
let me try that.

Messages
253
Country
us-newyork
How do the two framebuffer blend settings look?
If both are set to one you don't need alpha in your textures.

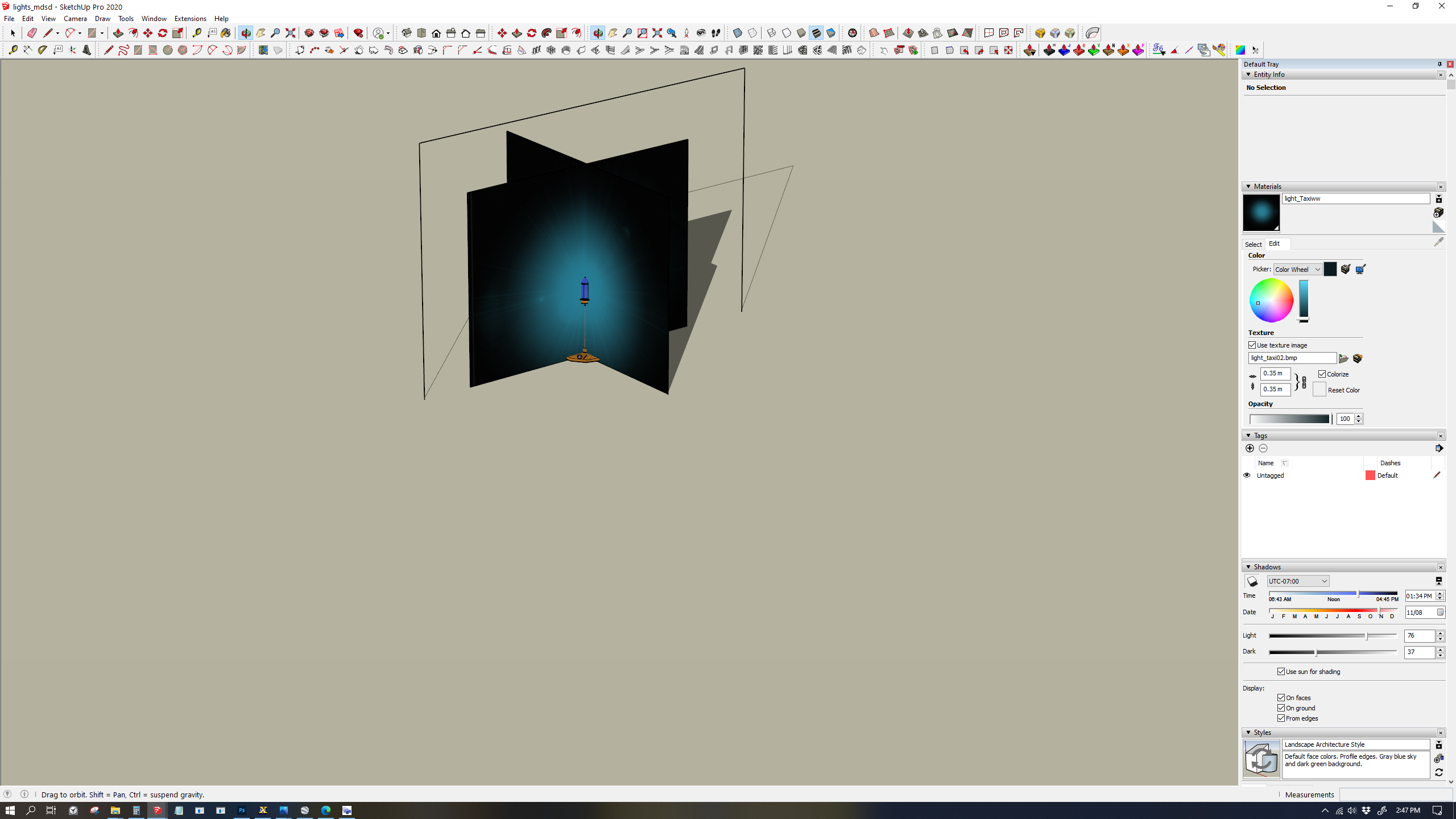

Screenshot 2020-10-04 14.29.39.png

I think the fact that both map are fully black works well. The light lights up very powerfully on setting ONE. So on the screenshot is on SrcColor.
Just need to work around the edges and calibrate it as it seems the map for some reason restarts it's repetitive job. I'll keep budging with it later on the day.
Thanks @dave hoeffgen
