ADE Compile errors

B

Butch1

Messages
228
Country
unitedstates

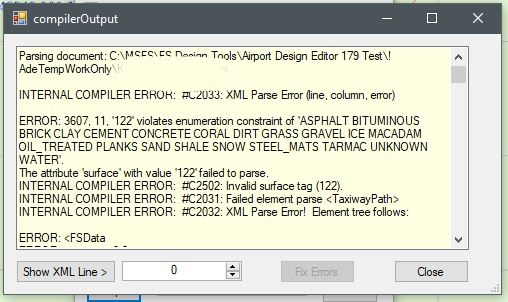

Using latest version of ADE V 1.79.7475 in P3D V5.3 HF2I get a compile error that I cannot interpret nor understand how to fix. '

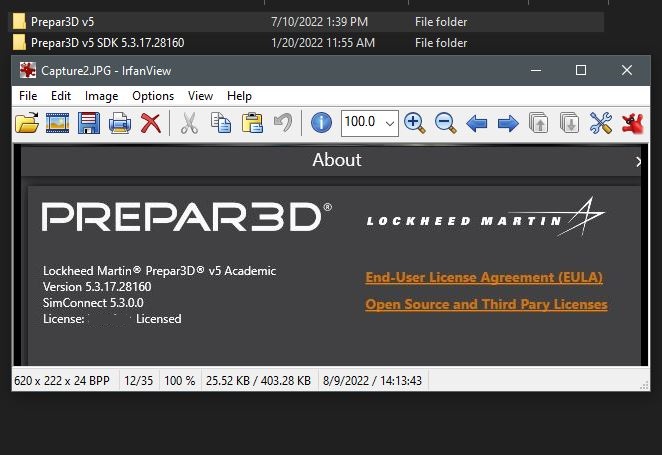

Are you using the latest version of the SDK that matches the installed sim version?

The problem appears to be that there is a value for surface which the compiler schema does not understand (122). Please post the project file (.ad4) which is showing this error. Please also tell me the source for this - did you create it from stock or from a third party bgl file or from something else?

I don't have the .ad4 file, this was a third party freeware scenery done for me and none of the .ad4 files were supplied to me. It was originally done for me in FSX long ago then "enhancements" were made
to it by another person to make it usable in P3D5. I was attempting to add a couple of objects to it after which the compile process errored out. If I just open the bgl do nothing but compile it will errror.
It works well in P3DV5. I didn't do any edits myself. I am just learning ADE and don't know much.


https://www.fsdeveloper.com/forum/threads/compile-errors-on-surfaces.447615/

Last edited:
I was using an older post here with similar "122" errors. It allowed me to compile when I got rid of the 122 errors in the fashion that it described.
I now have a grass strip where it should not be. I was able to add some objects and compile. I now have to figure out how to rid some grass strips
that are not needed.

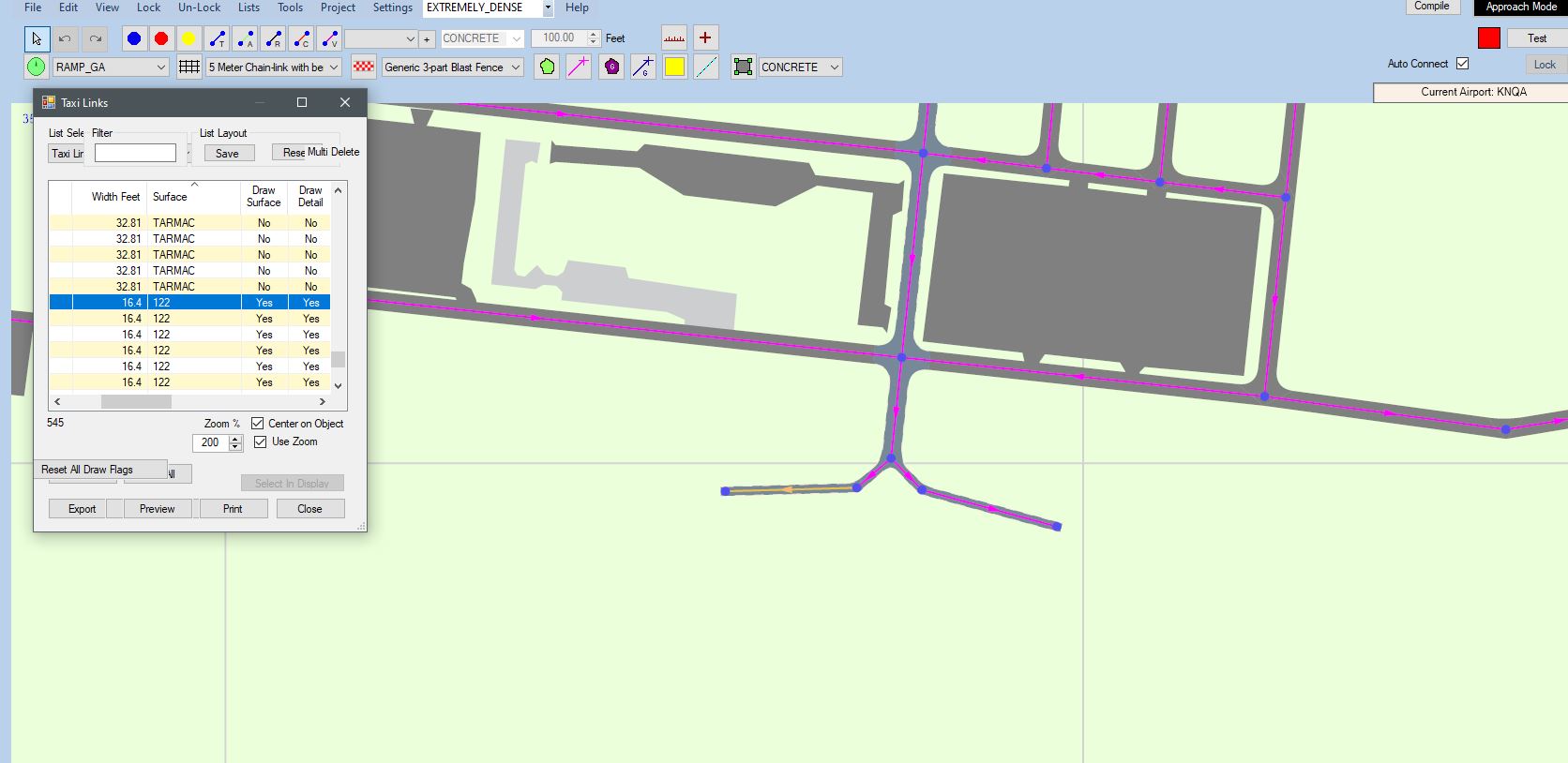

When I select one of the many 122 errors the backgound screen on the right will move to a different area and although center on object is ticked, I cannot tell what specifically I am looking at.
How can I tell what the specific 122 area is?


Hello...
It appears to be all the narrow pathways of 16.4 in width (all of them). They all have the tag name or in this case "122" - which isn't valid. It's highlighted in a bright yellow (the center line).

As Doug says its the left hand branch of the lowest taxiway, colored yellow down the center.
