P3D v3 [SOLVED] ADE does not compile GP with specular textures. (or bump)

It did not work Don. The speculuar and bump continue to be moved to the correct scenery folder, but they will not "attach"to the bgl model.

In addition, within the GP module, I can no longer move/rotate the polygon when I select all vertices (or even a single vertex).


gadgets

Resource contributor
The speculuar and bump continue to be moved to the correct scenery folder, but they will not "attach"to the bgl model.

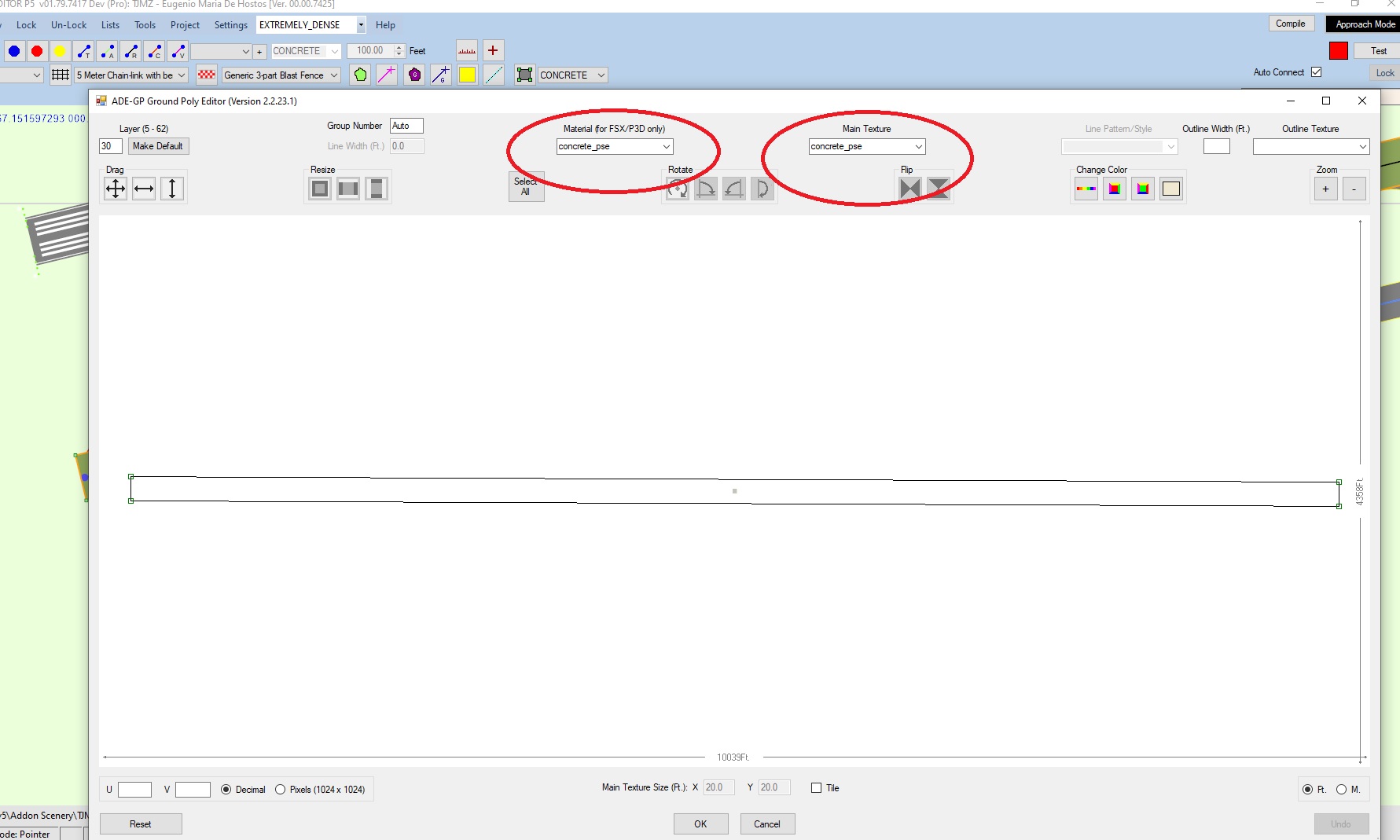

What do you mean by "attach"? On my system, the additional textures appear in the TEXT block of the .mdl inside the .bgl. Did you select the correct material in the GP Editor?
I can no longer move/rotate the polygon when I select all vertices (or even a single vertex).
Confirmed. It was working for me a few days ago.


gadgets

Resource contributor
You didn't explain what you meant by "attach". ADE_GP lists the three textures in, and copies your material specification into, the .mdl file which then forms part of the _GP .bgl.

It does not check the material specifications since it has no way of knowing what you intend other than by the specifications themselves. Only you can ensure they reflect your intent. Incidentally, that material was not included in the files you sent earlier.

What more do you expect ADE_GP to do or how else do you believe the .bgl is deficient?

Disregard Don, the GP.bgl worked fine with your fix. The only open issue is the manipulation of the vertices.

Thanks a lot for your help!
David

Last edited:

gadgets

Resource contributor
The OP before you declared the problem fixed, so I'm a little reluctant to rely on anything they said.

In any case, the attached fixes the vertex "drag" problem in the GP Editor. As well, I have confirmed that if:
  1. a custom material has been created, and
  2. that material is assigned to the GP in the GP Editor, and
  3. the airport compiles without error, that
  4. in the .mdl file forming part of the _GP.bgl:
  5. the TEXT block includes all the available textures for the material
  6. the MAT3 block reflects the material specifications, and that
  7. if the _GP.bgl is submitted to MCX, MCX reports the same material specifications as the custom material
Of course, if the custom material specification is in error, the GP is unlikely to display as expected.
