MSFS20 Visibility

bar_rodoy · 4 Feb 2022

No luck. Tried to apply a 9X9 rectangle, tried to add some LODS. The same happens.
Any ideas how to increase loading distance?

GuidoH · 4 Feb 2022

bar_rodoy said:
No luck. Tried to apply a 9X9 rectangle, tried to add some LODS. The same happens.
Any ideas how to increase loading distance?

I'm not sure but I think I heard that the asobo lights are based in LOD 11 of 14 available LODs. If you give that a shot it might be the solution. Maybe somebody else can confirm the LOD structure or you find something in the present sdk documentation. Good luck

bar_rodoy · 4 Feb 2022

GuidoH said:
I'm not sure but I think I heard that the asobo lights are based in LOD 11 of 14 available LODs. If you give that a shot it might be the solution. Maybe somebody else can confirm the LOD structure or you find something in the present sdk documentation. Good luck

Nevermind, got it to work. I draw a 20X20 rectangle 1.5 m below my light model. Created LOD by using MCX. Now it works!

mamu · 5 Apr 2022

For future reference, if anyone Is interested in, i have made a tutorial video including lot of the content that has been discussed in this 3d

Thanks to all the taletend guys here

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

fabs79 · 12 Apr 2022

ekre_ said:
yesterday I also started to play with <modelbehaviors>, love it already!

you have to add a "simobject" asset into your scenery, setup sim.cfg and model.cfg in models folder(s).
for folder structures I recommend to have a look at "MSFS SDK\Samples\WindsockSample\"

example xml code:

XML:

<?xml version="1.0" encoding="utf-8"?> <ModelInfo guid="{8d9d2120-a6dd-4c30-b0f4-bf67378809cc}" version="1.1"> <LODS> <LOD MinSize="0" ModelFile="gokart_1.gltf"/> </LODS> </ModelInfo> <ModelBehaviors> <Component ID="node1" Node="node1"> <Visibility> <Parameter> <Code>(E:LOCAL TIME, Seconds) 36000 >= (E:LOCAL TIME, Seconds) 64800 <= and (A:AMBIENT PRECIP STATE, mask) 4.0 < and (A:AMBIENT TEMPERATURE, celsius) 10.0 > and (E:Time of Day, enum) 2 < and if{ 1 } els{ 0 } </Code> </Parameter> </Visibility> </Component> </ModelBehaviors>

Hi,

sorry to reactivate an old thread, but I´m trying to use your visibility code for one of my sim objects, and your code works fine but I´d like to add another parameter to make the object only show up between March and October and to disappear from November to February. Could you show me how the xml should look like to achieve this?

mamu · 13 Apr 2022

Code:

<Code>(E:LOCAL MONTH OF THE YEAR, Number) 2 &gt;
 (E:LOCAL MONTH OF THE YEAR, Number) 11 &lt; and if {1} els {0} </Code>

@fabs79

Correct syntax to use Is in the image

AnnaM · 13 Apr 2022

Steffsim said:

Ah ok thanks. should probably read the sdk documentation more often

All I can do is give you one of my xml which is working. Maybe something is weong with your node name?

XML:

<?xml version="1.0" ?>




    <ModelInfo guid="{f3c59f69-a2a8-443b-aba3-dfe6b6ec9ee7}" version="1.1">

        <LODS>

            <LOD MinSize="0" ModelFile="steffhundEND.gltf"/>

        </LODS>

        <Animation guid="f111307b-0e32-4e24-8a77-9e4d21d6a781" name="Action" type="Standard" typeparam="AutoPlay" typeparam2="Action"/>

    </ModelInfo>




    <Behaviors>

<Component ID="hund" Node="hund">
<Visibility>
<Parameter>
<Code>(E:LOCAL TIME, Seconds) 36000 &gt;= (E:LOCAL TIME, Seconds) 64800 &lt;= and (A:AMBIENT PRECIP STATE, mask) 3.0 &lt; and (E:Time of Day, enum) 2 &lt; and if{ 1 } els{ 0 } </Code>
</Parameter>
</Visibility>
</Component>

</Behaviors>

As per the above example, let's say I wanted an object to be visible only during the morning between 10h and 11:30h and then again in the afternoon between 15h and 17:45h, I tried the following code:

<Visibility>
<Parameter>
<Code>(E:LOCAL TIME, Seconds) 36000 >= (E:LOCAL TIME, Seconds) 41400 < and (E:LOCAL TIME, Seconds) 54000 >= and (E:LOCAL TIME, Seconds) 63900 <= and if{ 1 } els{ 0 }</Code>
</Parameter>
</Visibility>

Unfortunately this doesn't work at all, and I've resorted to having two separate SimObjects now of the same exact model, resting_horse_a and resting_horse_b:

<?xml version="1.0" encoding="utf-8" ?>
<ModelInfo guid="{967e3c27-6153-48ae-9acf-040ea80d1abc}" version="1.0">
<LODS>
<LOD MinSize="0" ModelFile="resting_horse_a.gltf"/>
</LODS>
</ModelInfo>

<ModelBehaviors>
<Component ID="resting_horse_a" Node="resting_horse_a">
<Visibility>
<Parameter>
<Code>(E:LOCAL TIME, Seconds) 36000 >= (E:LOCAL TIME, Seconds) 41400 <= and if{ 1 } els{ 0 }</Code>
</Parameter>
</Visibility>
</Component>
</ModelBehaviors>

and

<?xml version="1.0" encoding="utf-8" ?>
<ModelInfo guid="{f9b7f015-bf81-4396-bbd4-bc5ab73d8512}" version="1.0">
<LODS>
<LOD MinSize="0" ModelFile="resting_horse_b.gltf"/>
</LODS>
</ModelInfo>

<ModelBehaviors>
<Component ID="resting_horse_b" Node="resting_horse_b">
<Visibility>
<Parameter>
<Code>(E:LOCAL TIME, Seconds) 54000 >= (E:LOCAL TIME, Seconds) 63900 <= and if{ 1 } els{ 0 }</Code>
</Parameter>
</Visibility>
</Component>
</ModelBehaviors>

Is there an elegant way of combining this in one SimObject with one single time-related visibility statement, so that resources are not duplicated?

Any guidance on this is very welcome!

Anna

mamu · 13 Apr 2022

Code:

<Code>(E:LOCAL TIME, Seconds) 36000 > (E:LOCAL TIME, Seconds) 41400 < and (E:LOCAL TIME, Seconds) 54000 > (E:LOCAL TIME, Seconds) 63900 < and or if{ 1 } els{ 0 } </Code>

Try this @AnnaM

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

AnnaM · 13 Apr 2022

mamu said:
Code:

<Code>(E:LOCAL TIME, Seconds) 36000 > (E:LOCAL TIME, Seconds) 41400 < and (E:LOCAL TIME, Seconds) 54000 > (E:LOCAL TIME, Seconds) 63900 < and or if{ 1 } els{ 0 } </Code>

Try this @AnnaM

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

Thank you Mamu, that's splendid!

The 36000 > and 41400 < threw up an error, I changed it to the following and got it working:

<Code>(E:LOCAL TIME, Seconds) 36000 >= (E:LOCAL TIME, Seconds) 41400 <= and (E:LOCAL TIME, Seconds) 54000 >= (E:LOCAL TIME, Seconds) 63900 <= and or if{ 1 } els{ 0 }</Code>

Really appreciate the guidance, thanks again!

Anna

mamu · 13 Apr 2022

AnnaM said:
Thank you Mamu, that's splendid!

The 36000 > and 41400 < threw up an error, I changed it to the following and got it working:

<Code>(E:LOCAL TIME, Seconds) 36000 >= (E:LOCAL TIME, Seconds) 41400 <= and (E:LOCAL TIME, Seconds) 54000 >= (E:LOCAL TIME, Seconds) 63900 <= and or if{ 1 } els{ 0 }</Code>

Really appreciate the guidance, thanks again!

Anna

ahh yeah Anna, the reason why it was not working is because I was writing from mobile, and the forum translates "greater" and "less than" operator

in the xml files the "greater than", ">" should be written as ">" and "less than", "<", should be written as "<"
(this is the reason why in two posts above i took a screenshot of the correct xml syntax)

Your former code wasn't working because, translated in a more common programmin style, it was:

IF
10 > LOCAL TIME > 11.30
AND <--- this is the error
15.00 > LOCAL TIME > 17.45
RETURN TRUE ( 1 )
ELSE
RETURN FALSE ( 0 )

local time will never be in both of the two conditions (between 10/11.30 AND between 15/17.45), so you can't never have 2 TRUE values,

so i have only changed the "and" with the "or"

now that the horse is resting correctly between his rest hours, I'm curious to see him running

ekre_ · 23 Apr 2022

any luck with SURFACE TYPE or SURFACE CONDITION?
i would like to show a sledge when the ground has snow on it.
already tried with these, without any success

Code:

<Component ID="node1" Node="node1">
<Visibility>
<Parameter>
<Code>
(A:SURFACE TYPE, enum) 8 == if{ 1 } els{ 0 }
</Code>
</Parameter>
</Visibility>
</Component>

and with this

Code:

<Component ID="node1" Node="node1">
<Visibility>
<Parameter>
<Code>
(A:SURFACE CONDITION, enum) 3 == if{ 1 } els{ 0 }
</Code>
</Parameter>
</Visibility>
</Component>

without any success.

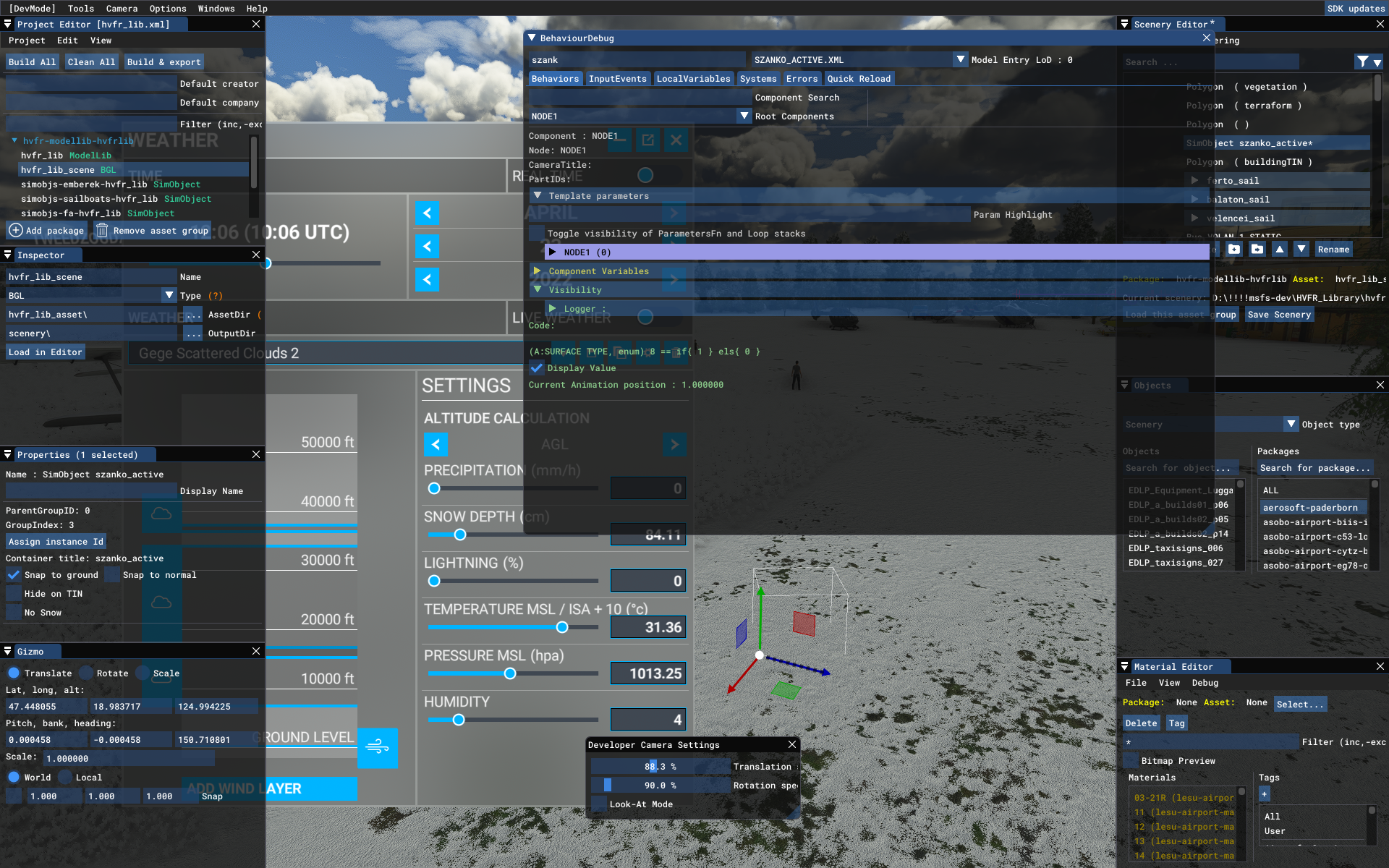

according to the behavior debug window, it should work, as a simple scenery objects its loads.

GuidoH · 23 Apr 2022

Hey did you double check that the name of your sledge object in blender/3DS is called "node1"? I assume that is not the case but the reason. As indicated on your behaviour screen, your statement itself is ok. So my advice, check the name!
Regards Guido

ekre_ · 23 Apr 2022

GuidoH said:
Hey did you double check that the name of your sledge object in blender/3DS is called "node1"? I assume that is not the case but the reason. As indicated on your behaviour screen, your statement itself is ok. So my advice, check the name!
Regards Guido

thanks, yes, sadly its "node", checked several times. i dont know what happens, the asset loads (I can clearly see as its hitbox changes), but the item stays hidden.

GuidoH · 23 Apr 2022

send the blender file pls, node or node1?

ekre_ · 24 Apr 2022

GuidoH said:
send the blender file pls, node or node1?

misstype, "node1" ofc. im not at home, i will attach it tomorrow, thanks!

slasko79 · 28 Apr 2022

ciao to all!!
anyone know how to make an object appear only when it snows?

mamu · 28 Apr 2022

(A:AMBIENT PRECIP STATE, mask) 4.0 >

Should work

This contains a sample with rain

Adding SimObjects

Hi, im trying to make a working clock for msfs2020, i saw a thread on one which was a simobject. But how do the project folder structure has to look like, and where to export the object to?:)

www.fsdeveloper.com

Ciao !

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

slasko79 · 29 Apr 2022

grazie @mamu
I didn't want to disturb you on discord again

I made the snowman, edited everything, now you i see when it snows!
can i make it appear even if it's not snowing but on the ground it's snowing?
in the sdk it doesn't mention it, it makes me think that the only way would be with the temperature like in your video

mamu · 29 Apr 2022

@slasko79
Nessun disturbo, vai tranquillo

About SURFACE TYPE, looks like It Is not working

MSFS20 - Non-looping SimObject animation

Does anyone have an example of a scenery SimObject that does not loop? What is the required xml to halt the animation at a specific keyframe?

r.tapatalk.com

Inviato dal mio Mi 9 Lite utilizzando Tapatalk

ekre_ · 30 Apr 2022

surface type and surface condition seems not working
