SDK XToMDL Error : D3DXFERR_PARSEERROR: Parse error (-2005531760)


I was working on creating SODE Jetways using the SODEJetwaySDK and I was able to successfully make the model, run the CreateJetway Script and export the .x and .xanim files. However, when I check the "Build MDL file" checkbox in the LOD and Export Tool, I get the following error. D3DXFERR_PARSEERROR: Parse error (-2005531760) . I tried creating the shortcuts and targets to the XToMDL.exe and then dropping the .x file onto the shortcut but the command window closes before I was able to get any info and no .mdl file was generated. I have the DirectX June 2010 SDK installed and I uninstalled and reinstalled it just to make sure today. Any insights on this issue would be very helpful.

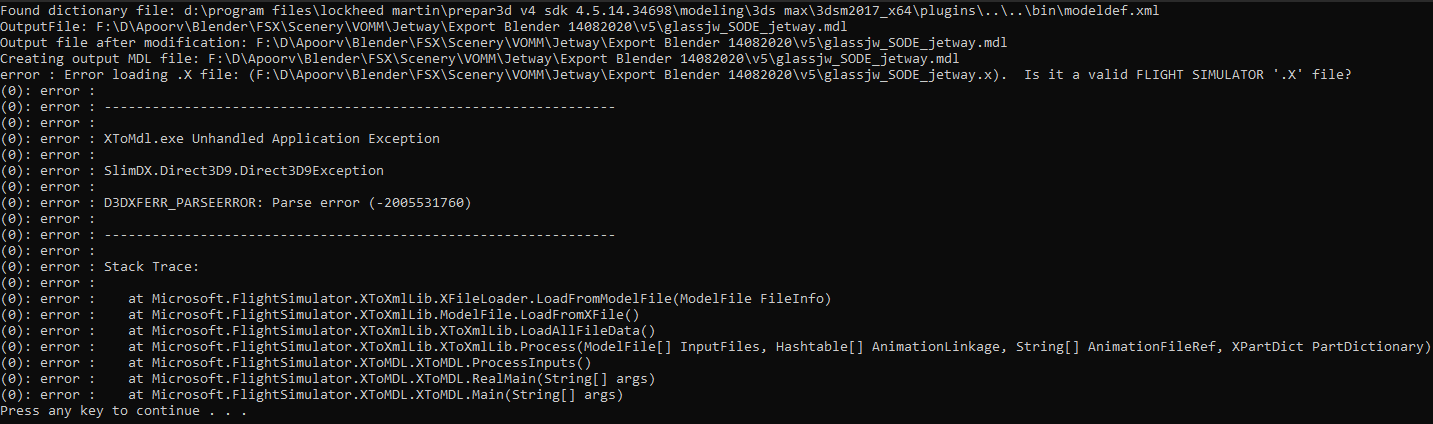

Here's the screenshot of the window captured when I click on Build MDL file while exporting from 3DS Max 2017 SP3 x64 with the Prepar3D v4 SDK


Thanks a lot for your help!

Warm Regards,


Resource contributor
Above that there is an initial error that it could not load the X file. Perhaps the path is too long? Try compiling to/from a shorter path?
